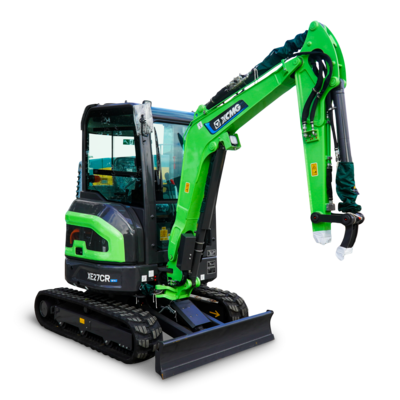

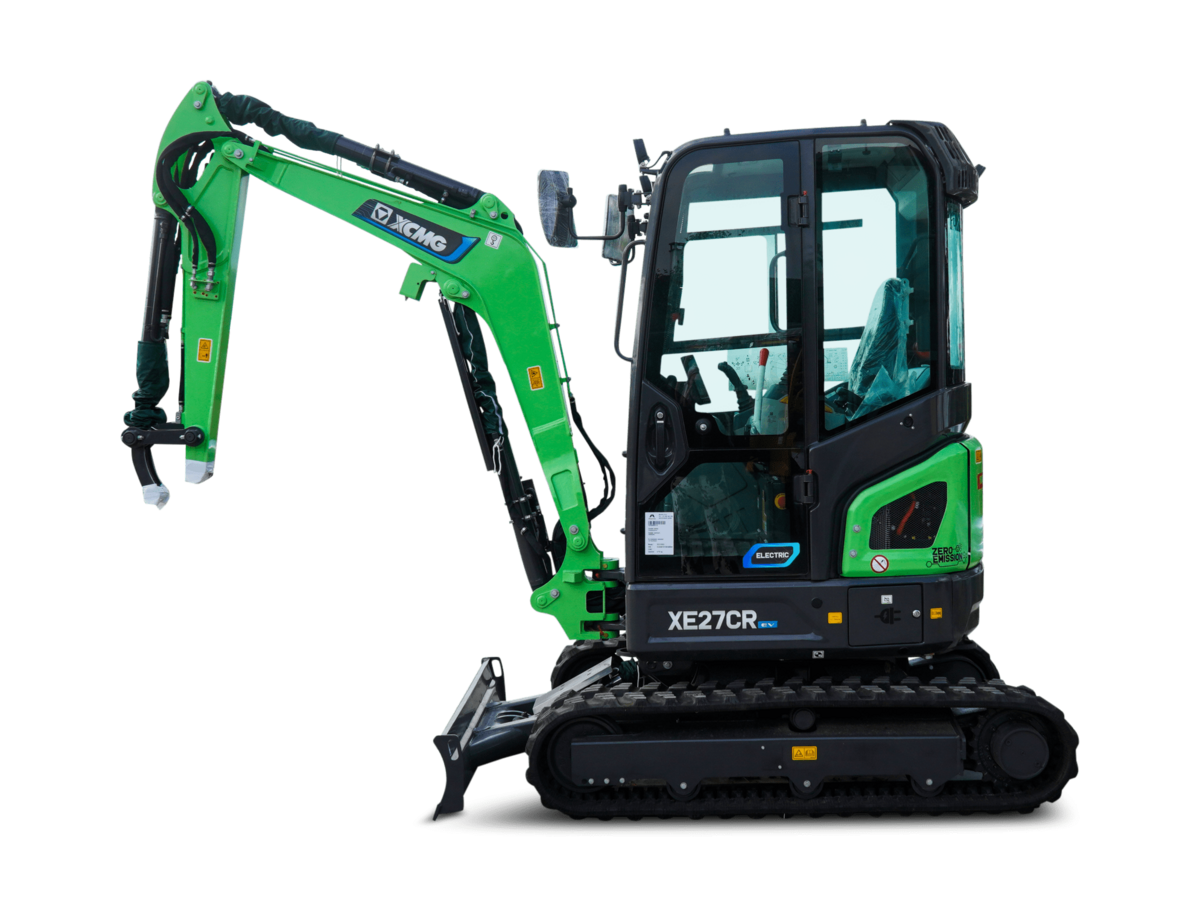

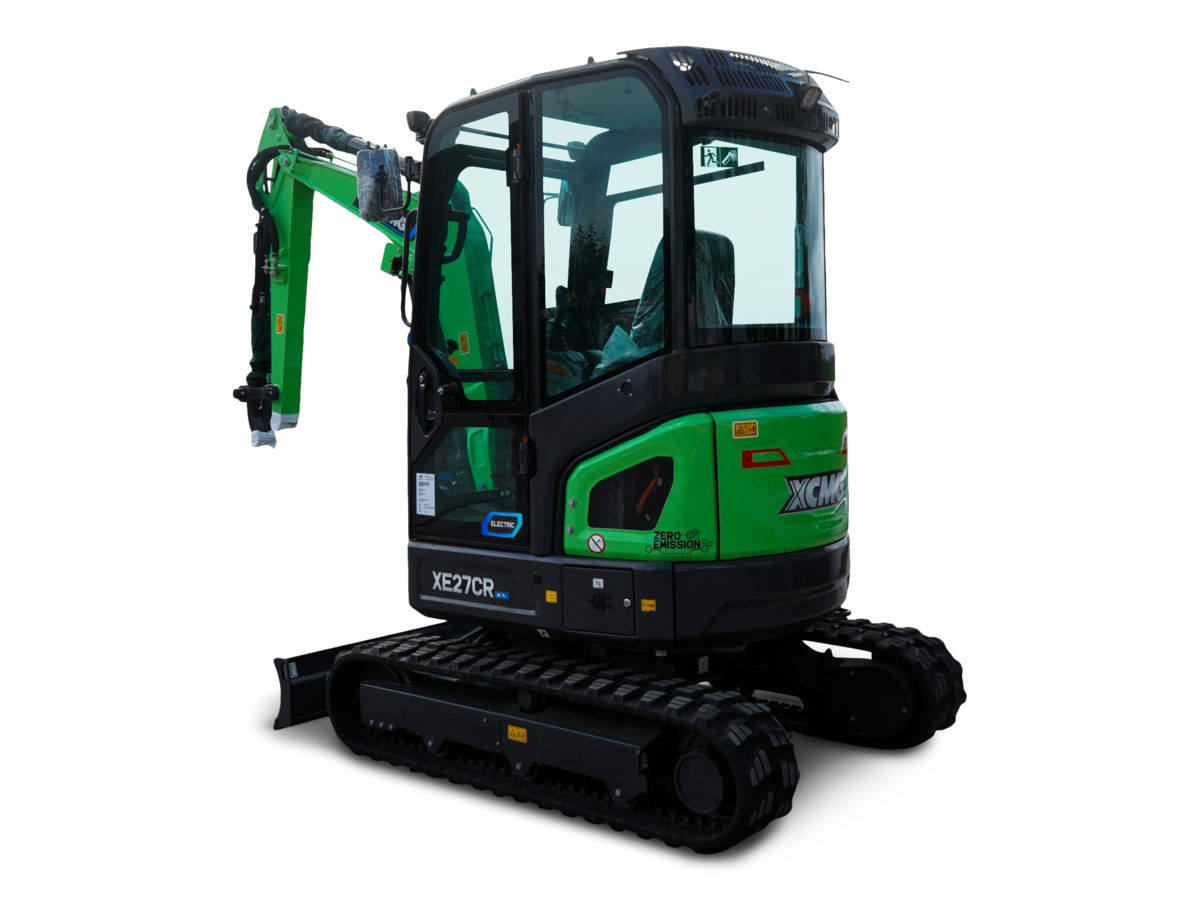

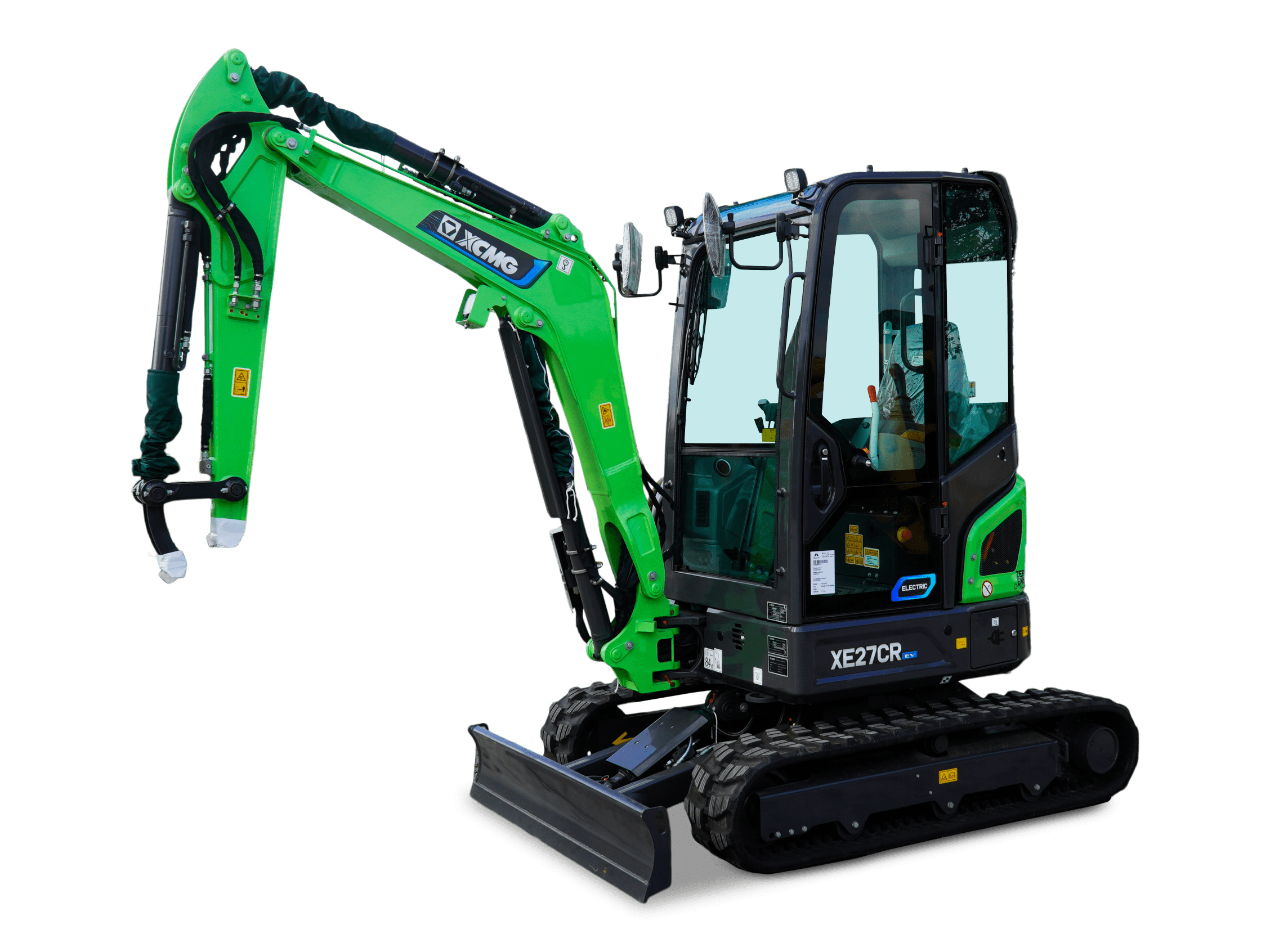

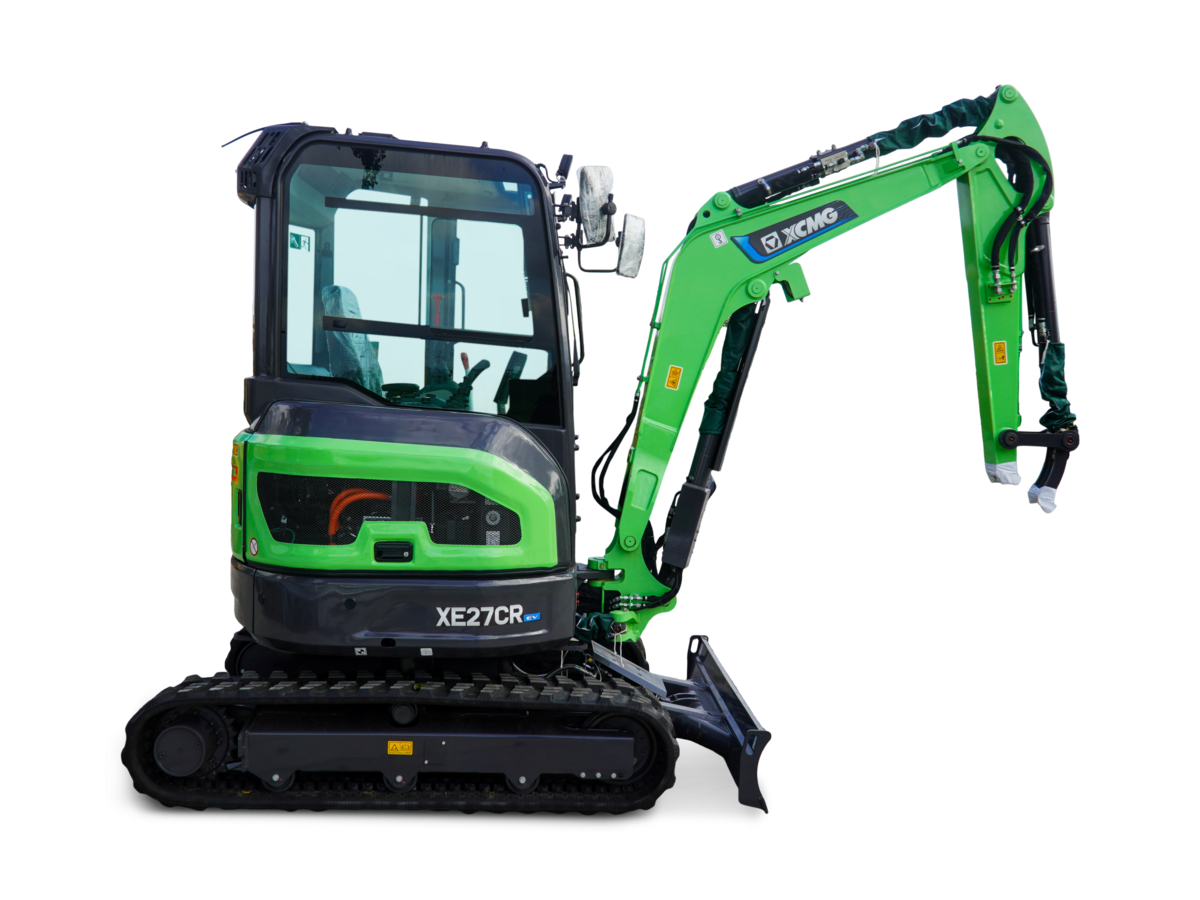

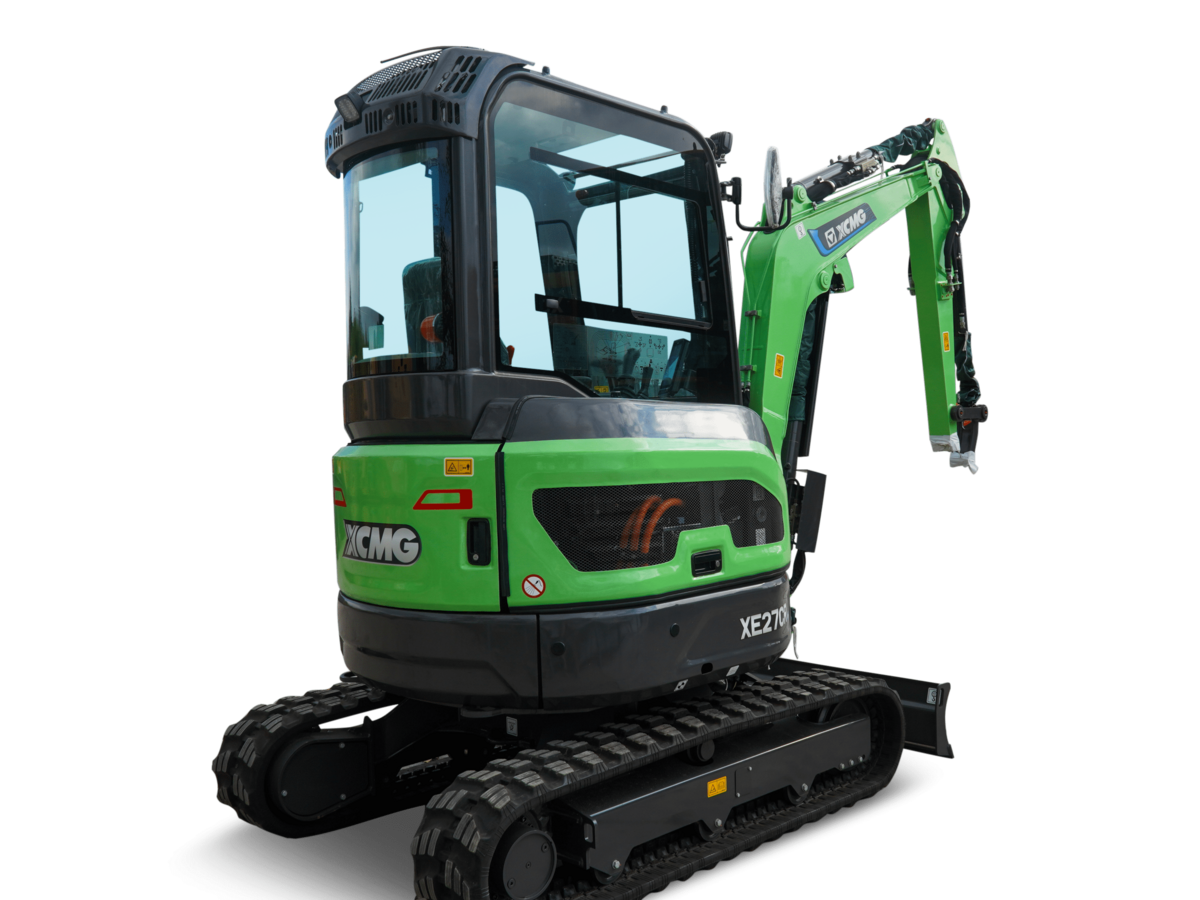

XCMG XE27CREV
Fitted as standard with:

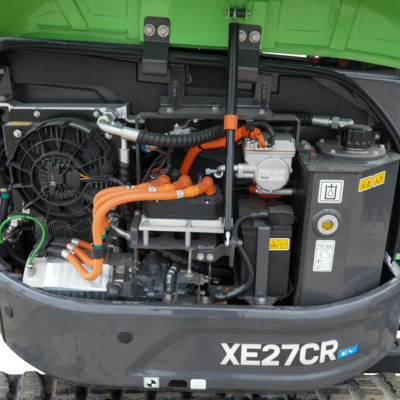

- 16.1 kW permanent magnet synchronous electric motor

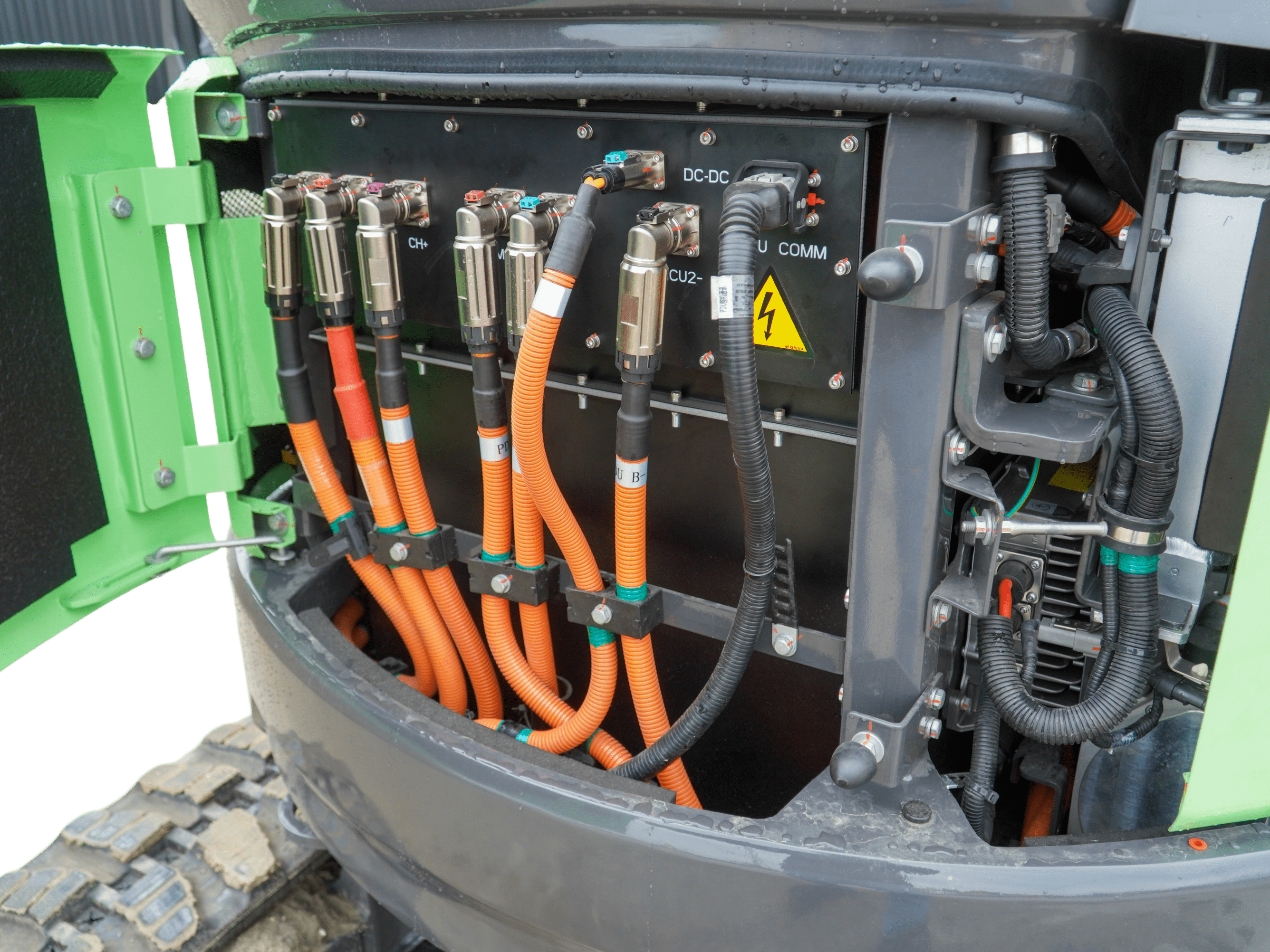

- 23.5 kWh lithium-iron phosphate battery pack
- Load-sensing hydraulic system with variable pump

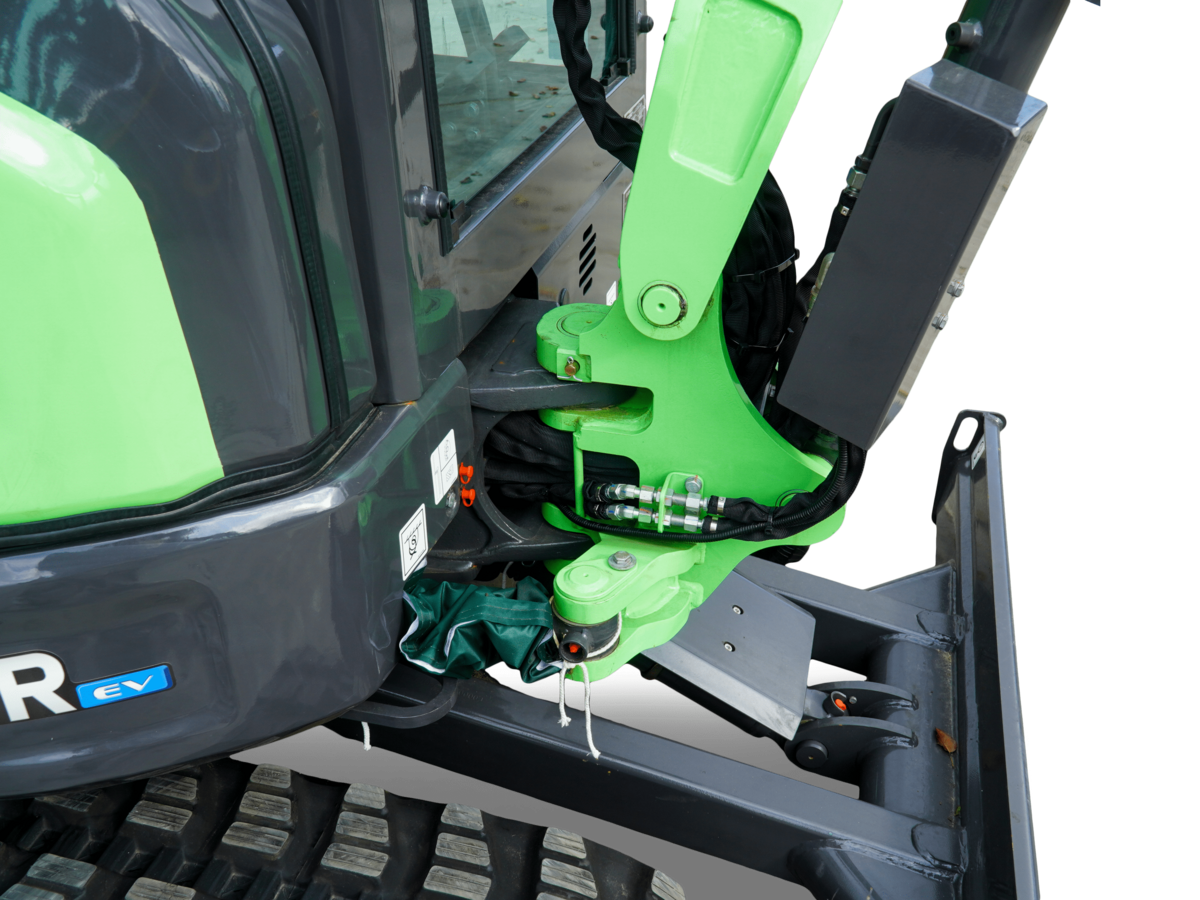

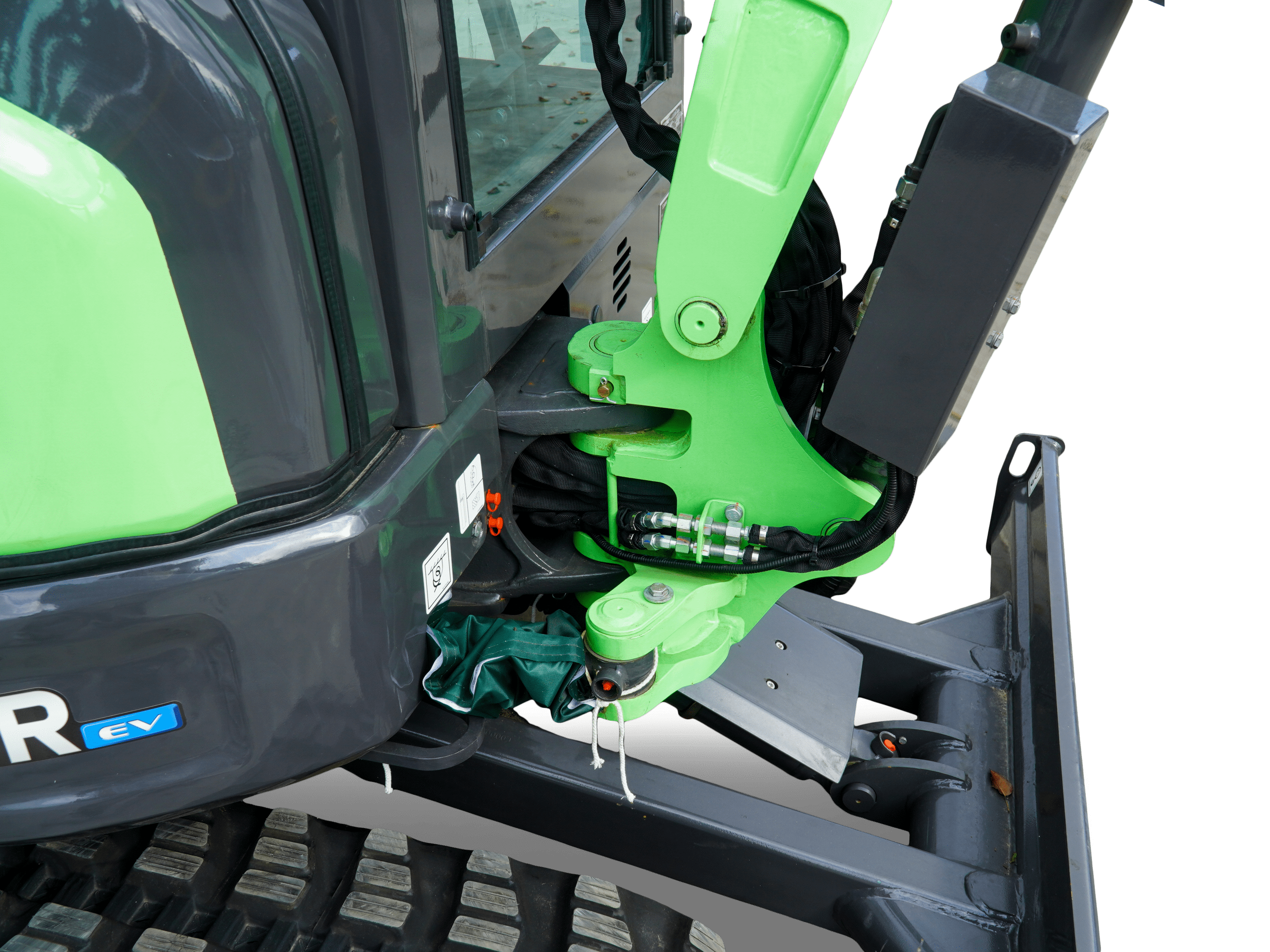

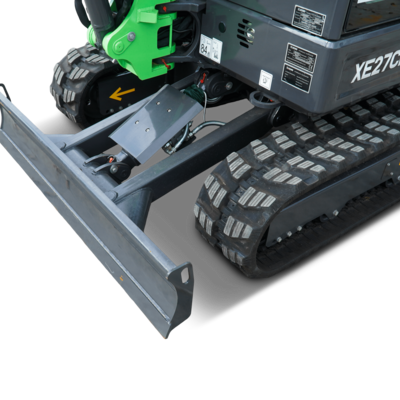

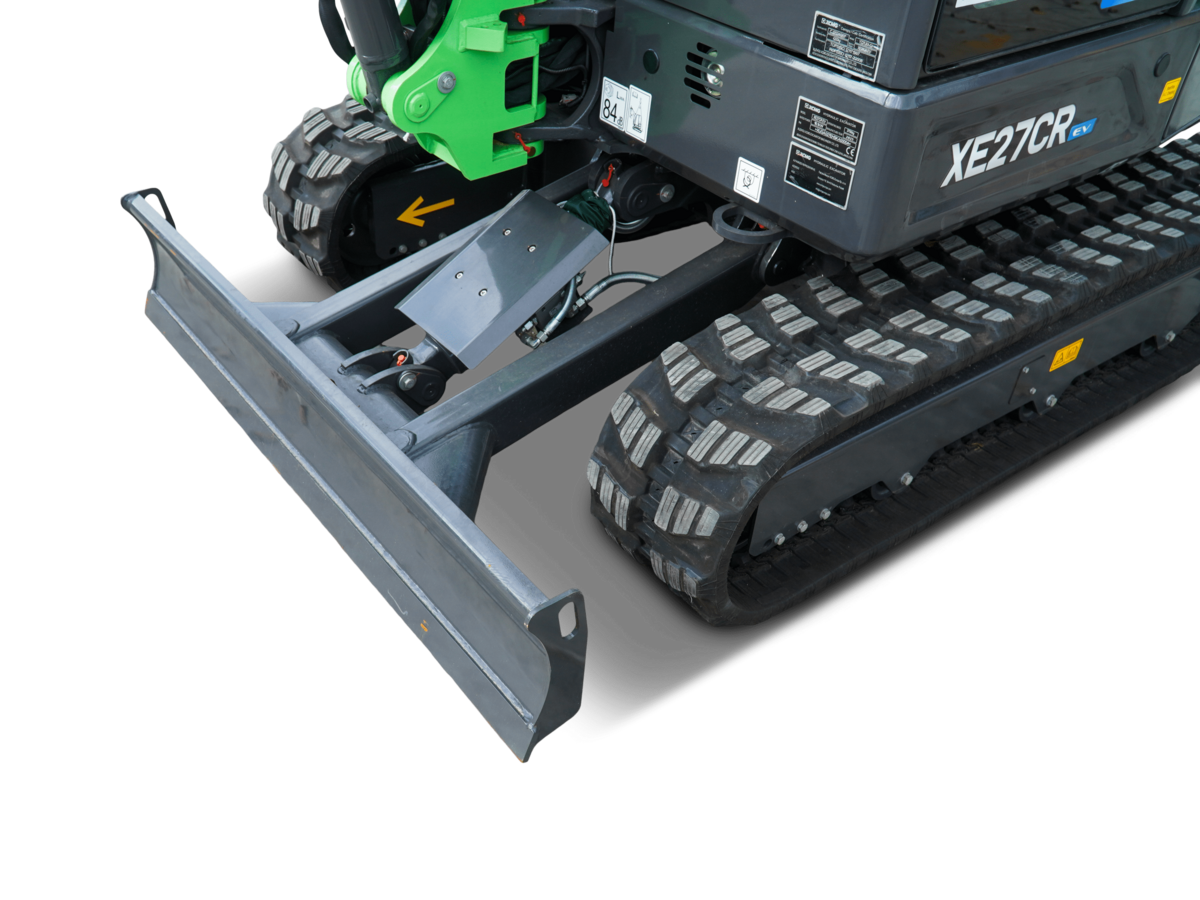

- Compact design with short swing radius and dozer blade
- ROPS safety cab in accordance with ISO 12117-2

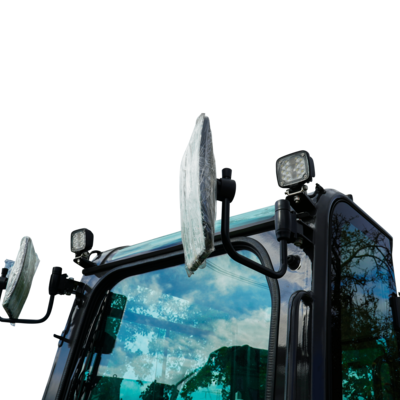

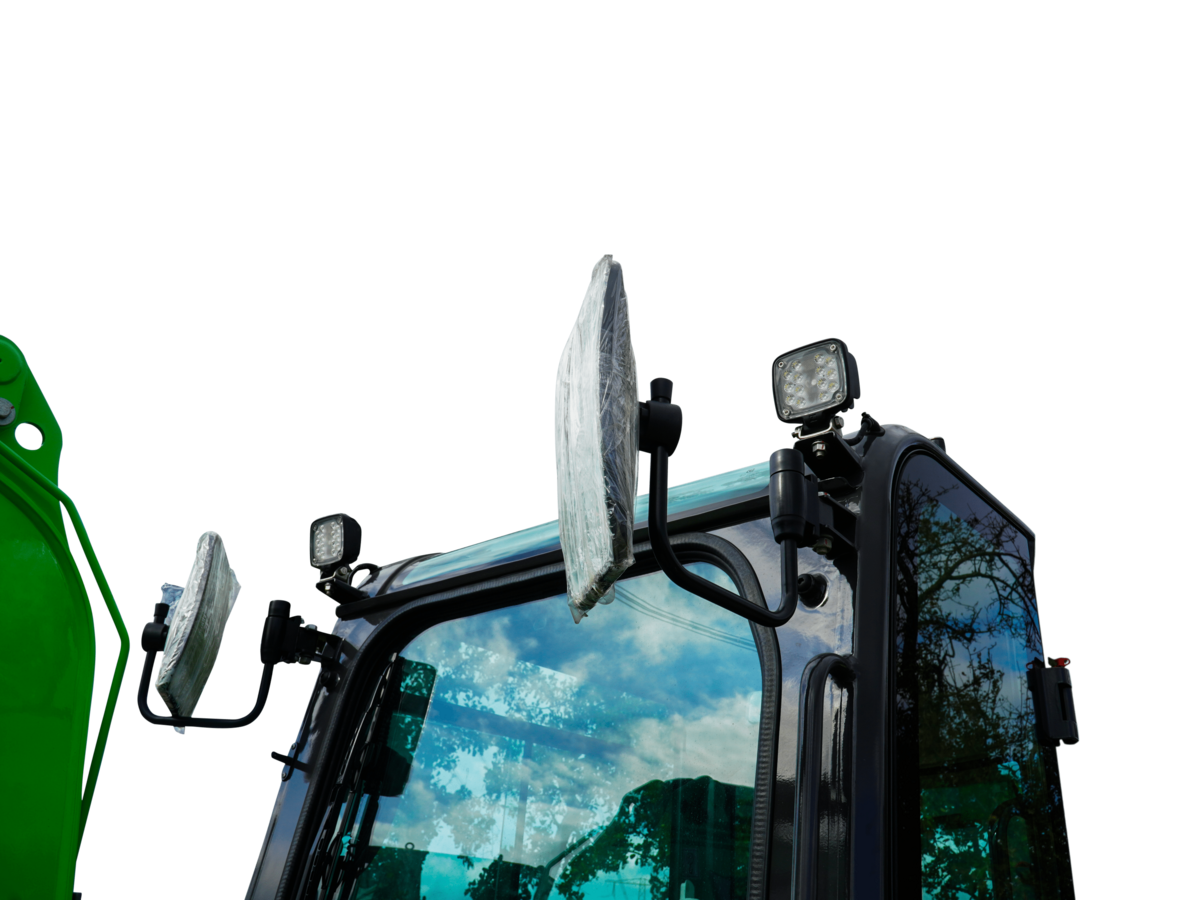

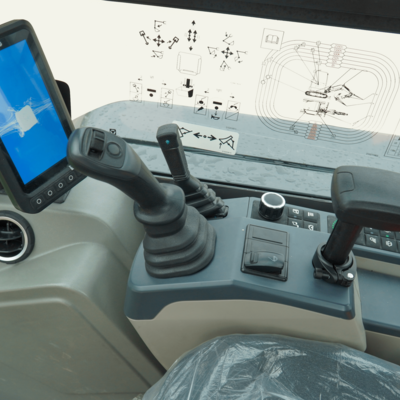

- LED work lights and ergonomic control panel
- Rubber tracks (300 mm wide) with hydraulic travel motor

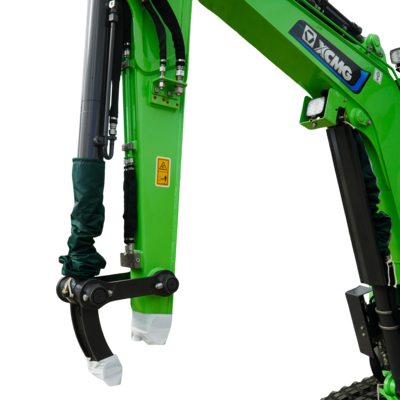

- 0.06 m³ ground bucket and standard 2,090 mm boom
- 2 working modes (Power & Eco) for optimum efficiency
- Naturally cooled battery system with heating element
Downloads
Overall width
1500
Track width
1200
Battery capacity
23.5
Own weight
2750
Specifications
Dimensions
- 8 ft digging depth with flat floor
- 2313
- Chassis width
- 1500
- Counterweight free space
- 528
- Cradle base
- 1560
- Ground clearance
- 290
- Height of dozer blade
- 300 mm
- Height of tracks
- 455
- Height to top of roof
- 2620
- Max cutting depth of dozer blade
- 330
- Max. Digging depth
- 2800
- Max. Digging height
- 4390
- Max. Tipping height
- 3120
- Max. Vertical digging depth
- 2310
- Max. excavation radius
- 4750
- Maximum lifting height of dozer blade
- 310
- Maximum reach at GRP
- 4640
- Min. forcing radius
- 1980
- Minimum unloading height
- 955
- Overall length with bin
- 4225
- Overall width
- 1500
- Tail swing radius
- 790
- Track length
- 1560
- Track width
- 1200
- Width of tracks
- 300
- Width of upper structure
- 1350
Electric motor
- Battery capacity
- 23.5
- Driving motor
- 16.1
- Running time
- 5 hours
Hydraulic system
- Driving system pressure
- 243
- Main pressure safety valve
- 240
- Main pump output
- 86.4
- Steering pressure
- 24.3
- Swing system pressure
- 21
Other
- Hydro tank
- 20
Technical specifications
- Arm digging force
- 14
- Ground pressure
- 26.4
- Max traction force
- 29.7
- Max. Digging force
- 23
- Rotation speed
- 10
Weight
- Own weight
- 2750
Applications and benefits of the XCMG XE27CREV
🌍 Ideal for emission-free work locations
The XE27CREV is fully electric, making it particularly suitable for deployment in locations where emission-free work is required or desired. Examples include:
- Inner-city construction sites
- Renovation projects indoors or in existing buildings
- Tunnels, car parks or halls
- Greenhouse horticulture, agricultural sheds and livestock buildings
- Municipal maintenance and utilities
- Demolition work in sensitive environments (such as hospitals or schools)
Thanks to the low noise level and absence of exhaust fumes, the machine can be used without disturbing the surroundings, even early in the morning or in the evening hours.
Advantages in use
- Emission-free & whisper-quiet
No emissions of CO₂, nitrogen or fine dust - and quiet operation that makes the working environment more pleasant and safe. - Low operating costs
Electric drive means less maintenance of engine components, no diesel costs and less wear and tear on moving parts. - Instant response & precise control
Thanks to the electro-hydraulic system, the machine responds smoothly and precisely - ideal for precision work or working in tight spaces. - Long working time per charge

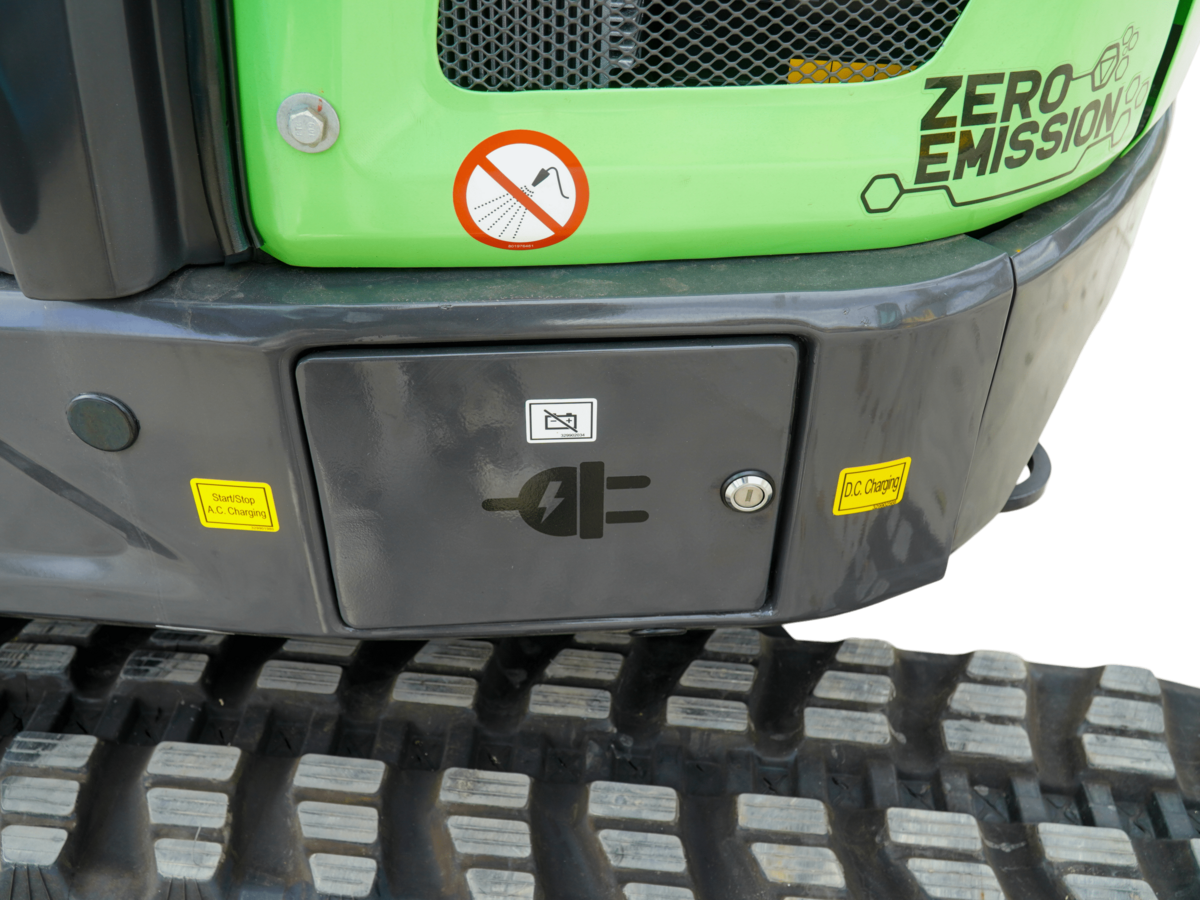

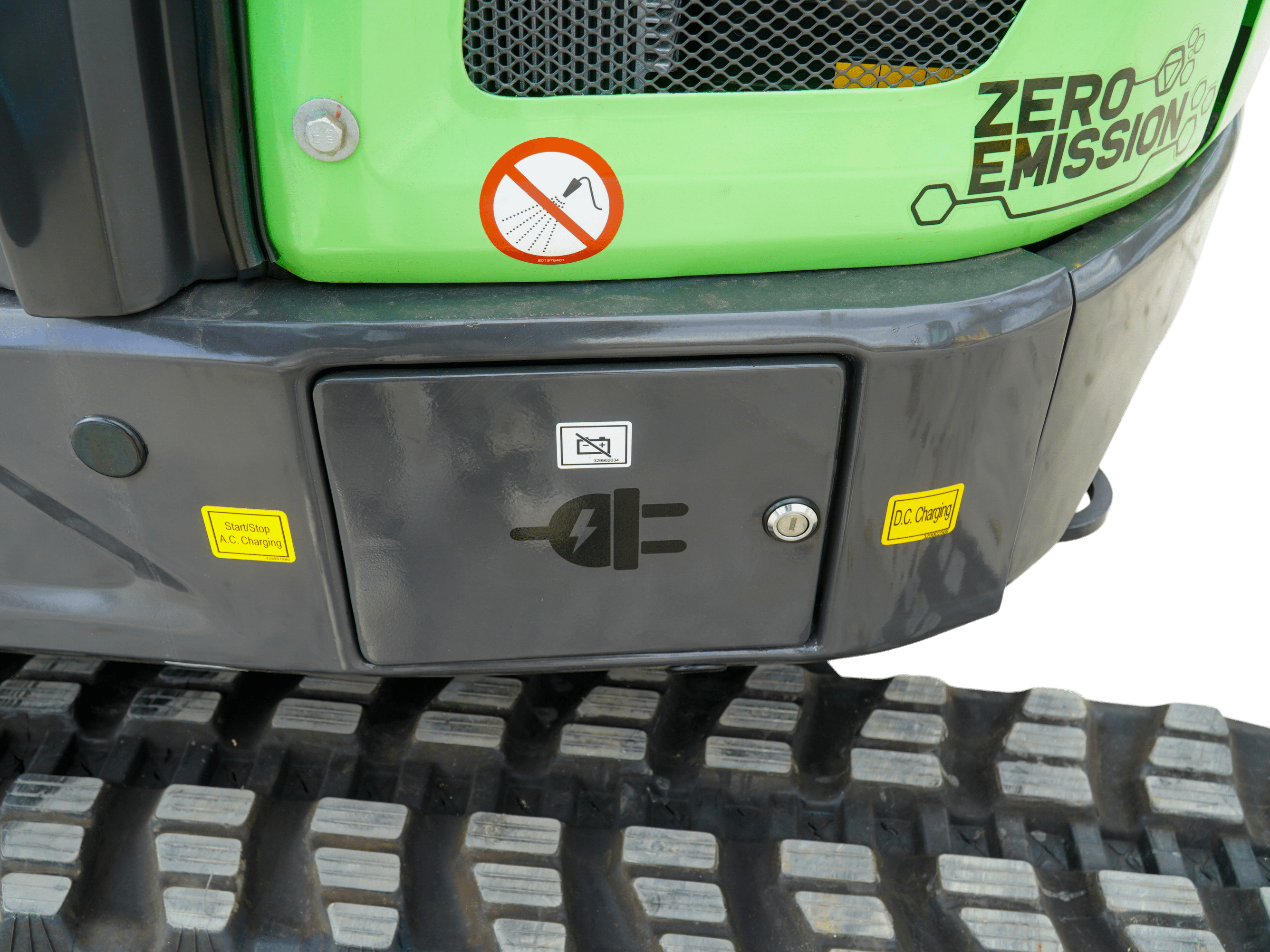

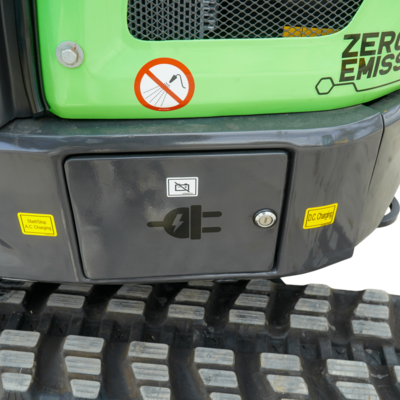

The 23.5 kWh battery pack offers a duty cycle of 3.5 to 5 hours, depending on load and application. Charging can be done via standard and fast charge options. - Ergonomic and comfortable
The machine features a safe and clear operator position, ergonomic controls and ROPS-approved cab. - Sustainable investment
The XE27CREV is future-proof and meets the strictest environmental standards, which also makes it attractive for subsidies and tender processes with sustainability criteria.
