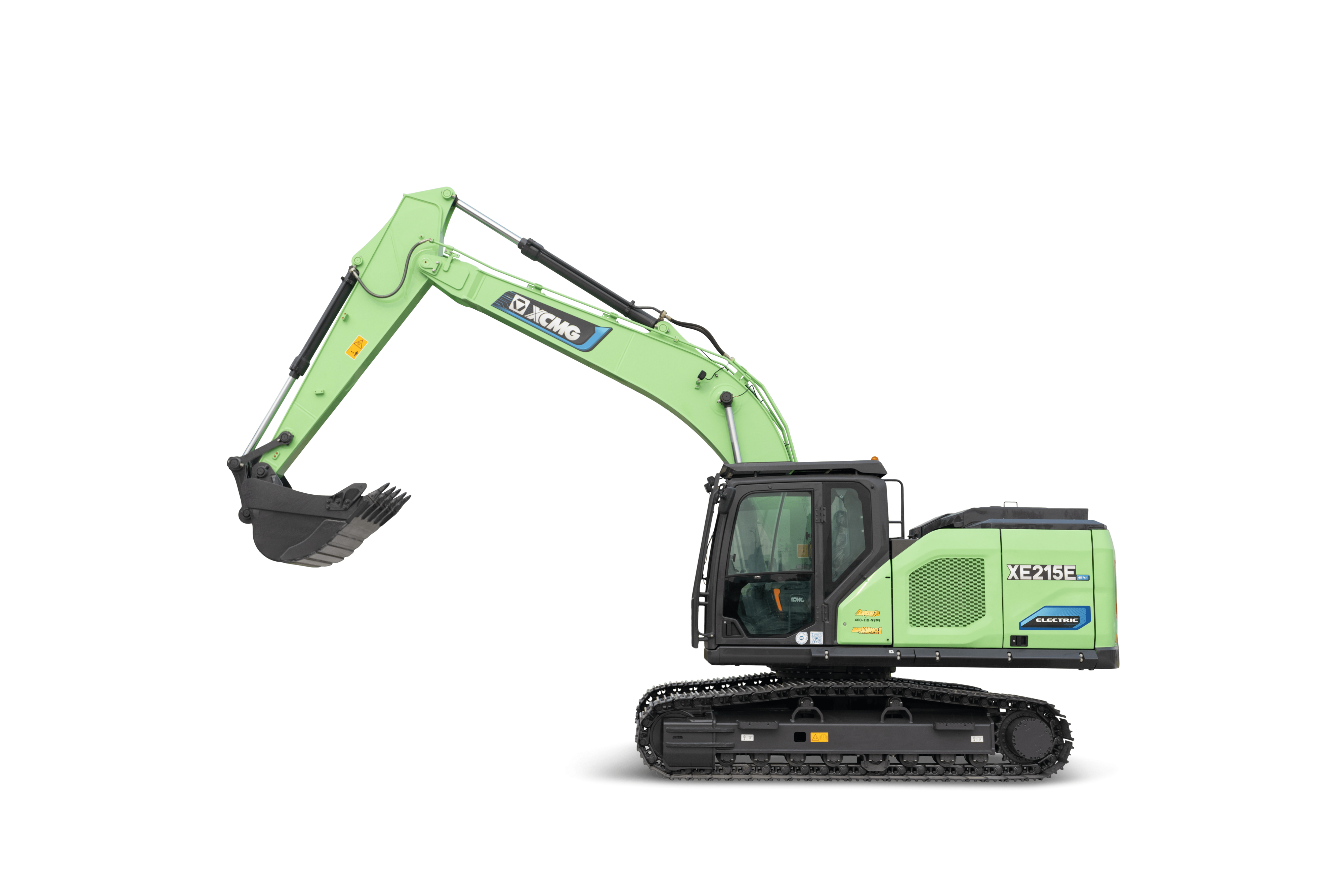

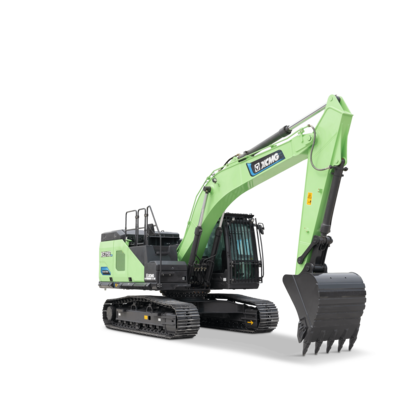

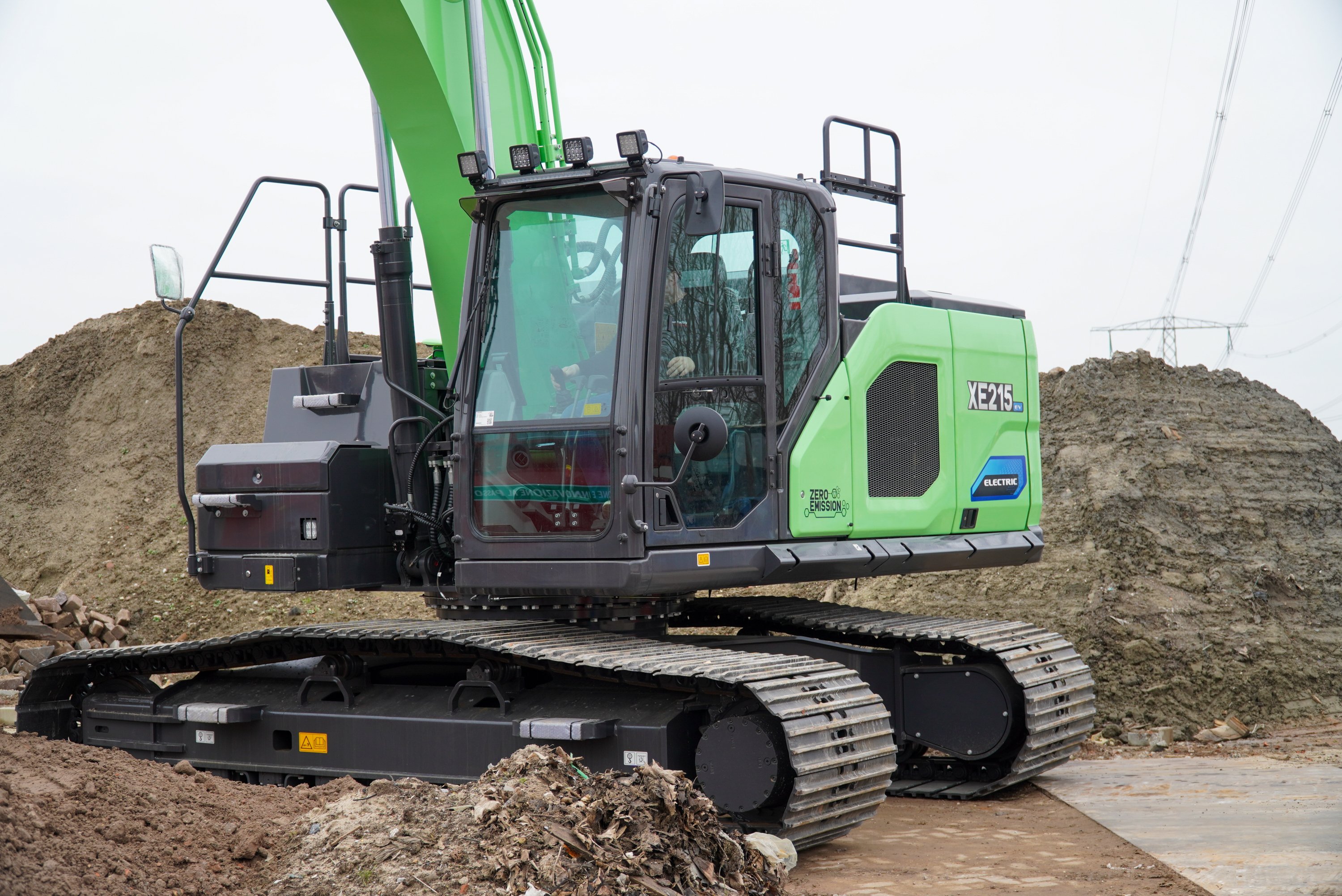

XCMG XE215-EV
Fitted as standard with:
- Electric 140 KW motor
- 423Kwh battery pack
- Hammer function
- Sorting function
- Air conditioning
- Rear camera
Price on request
Downloads
Overall width
2990
Own weight
23500
Specifications
Dimensions
- Cabin width
- 2990
- Counterweight free space
- 1100
- Cradle base
- 3452
- Ground clearance
- 490
- Height of tracks
- 950
- Height to top of roof
- 3145
- Max. Digging depth
- 6680
- Max. Digging height
- 9620
- Max. Tipping height
- 6780
- Max. Vertical digging depth
- 6500
- Max. excavation radius
- 9940
- Min. forcing radius
- 3530
- Overall length with bin
- 9720
- Overall width
- 2990
- Platform width
- 2940
- Width of tracks
- 900
Engine
- Cooling
- Liquid
Hydraulic system
- Driving system pressure
- 330
- Main pressure safety valve
- 350
- Main pump output
- 221
- Steering pressure
- 40
- Swing system pressure
- 265
Technical specifications
- Arm digging force
- 111
- Ground pressure
- 48.5
- Max traction force
- 210
- Max. Digging force
- 149
- Rotation speed
- 12
Weight
- Own weight
- 23500
