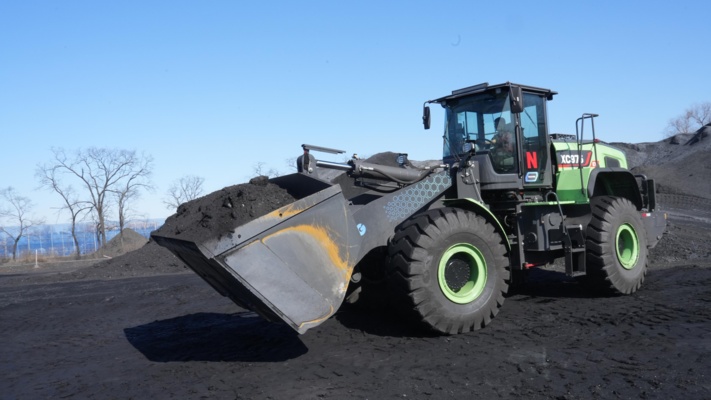

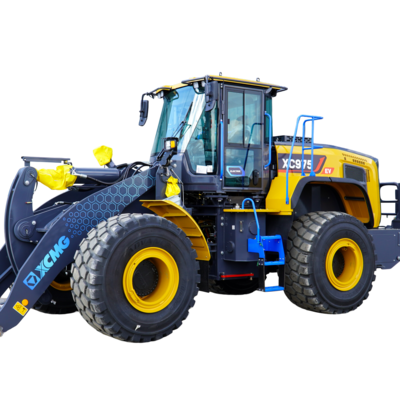

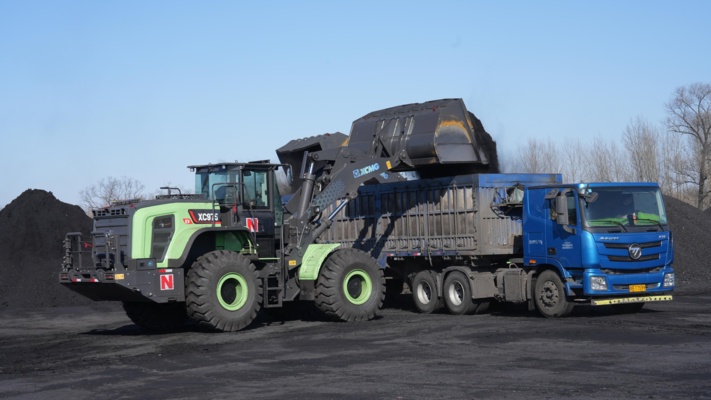

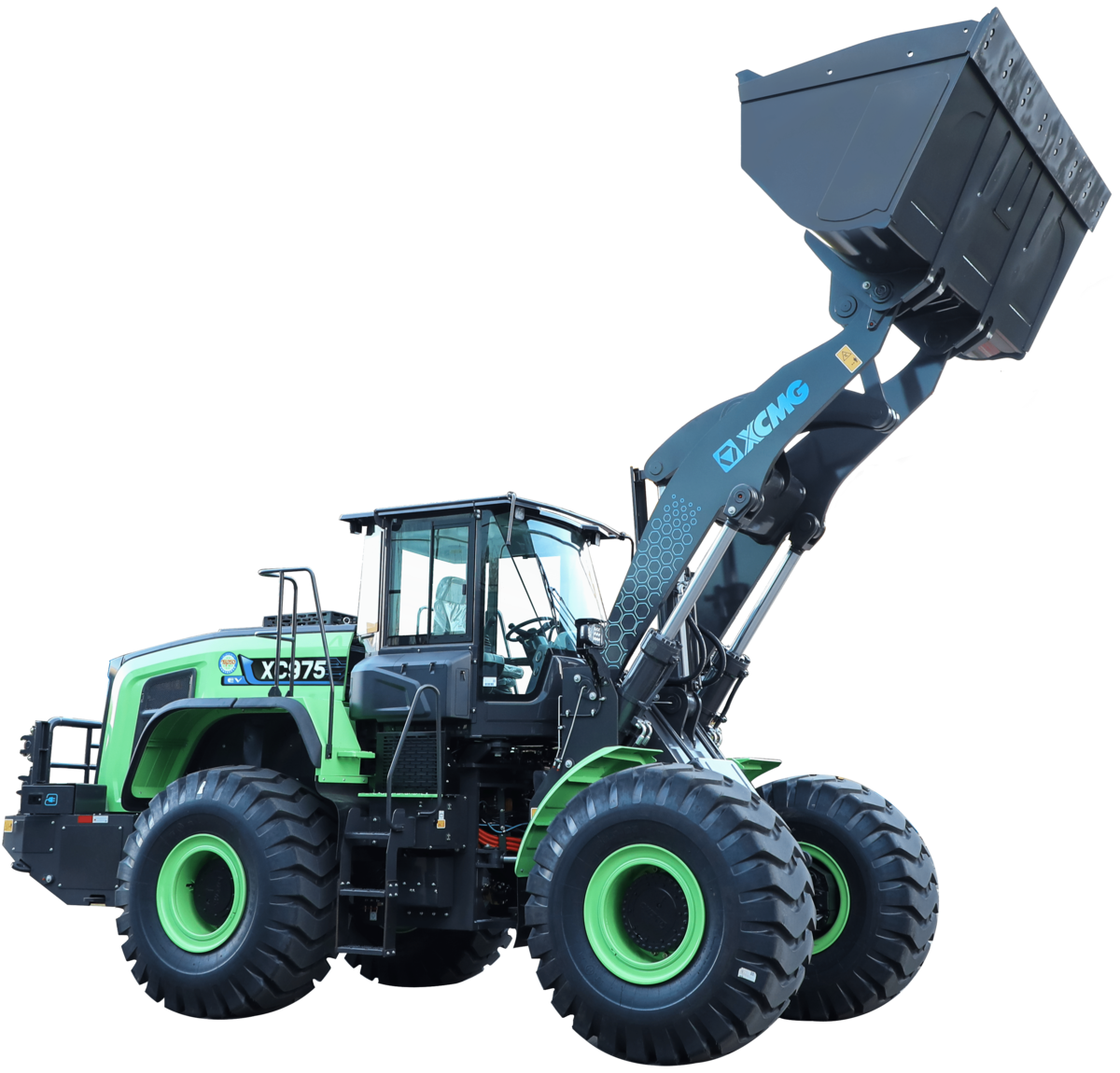

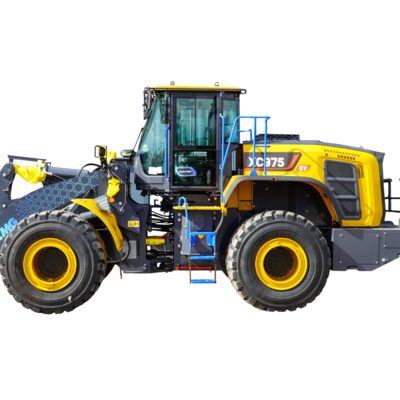

XCMG XC975-EV
Fitted as standard with:
- CATL-Lithium battery pack 423kWh-618V,
- 2 Driving motors: 200kW (2x 100kW) directly on drive shaft
- 70kW hydro motor
- Lifting capacity: 7000 Kg.
- 2x Double hydr. connection on arm
- Cabin with A/C , Radio , Working lights etc.
Emission-free with a cost saving of more than 60% in operation
Downloads
Own weight
23160
Specifications
Dimensions
- Bin capacity
- 4
- Cradle base
- 3450
- Field wire
- 2418
- Height to top of roof
- 3505
- Max. Tipping height
- 3370
- Overall length with bin
- 9150
- Overall width
- 3300
- Steering angle
- 38
- Tipping range
- 1267
- Turning circle
- 6115
Electric motor
- Battery capacity
- 423
- Driving motor
- 270
- Running time
- 6 - 8 uur
Technical specifications
- Max traction force
- 184
- Max. Breakout force
- 182
- Total cycle time
- 9.7
Weight
- Max. Lifting capacity
- 7000
- Own weight
- 23160
