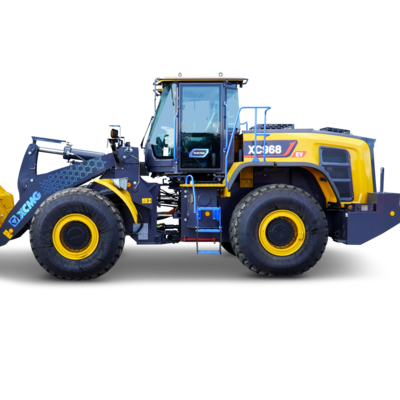

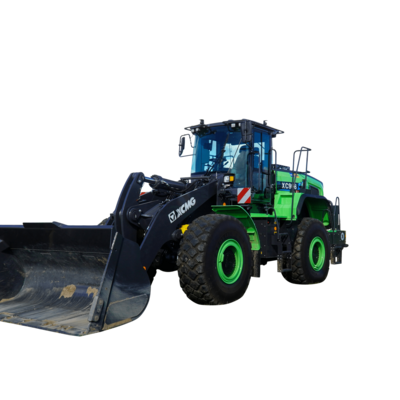

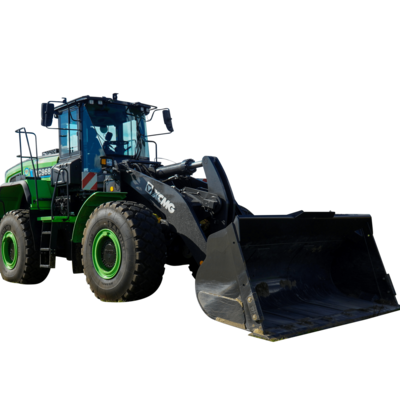

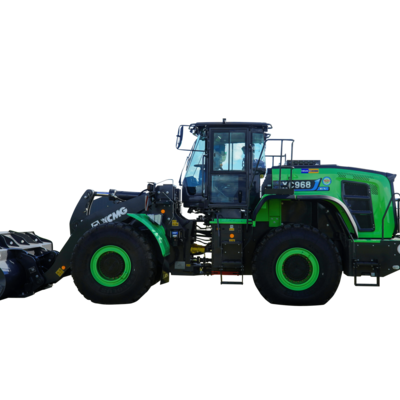

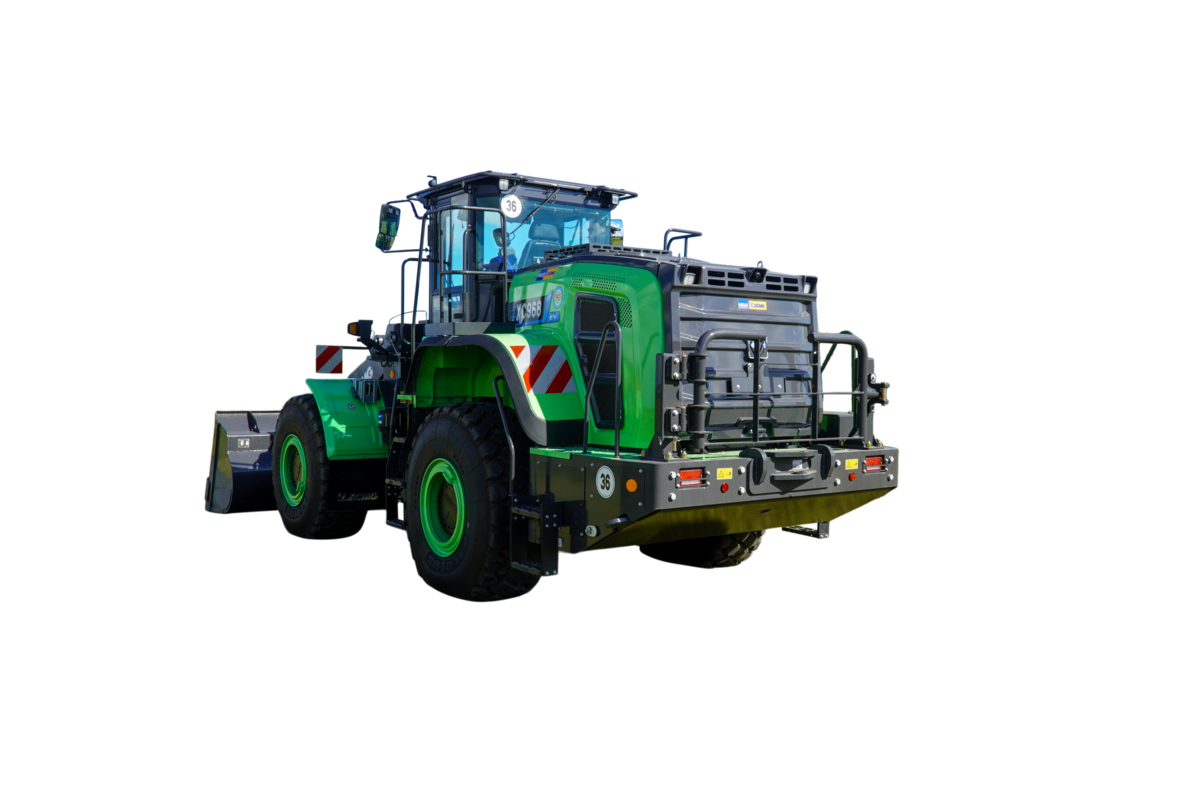

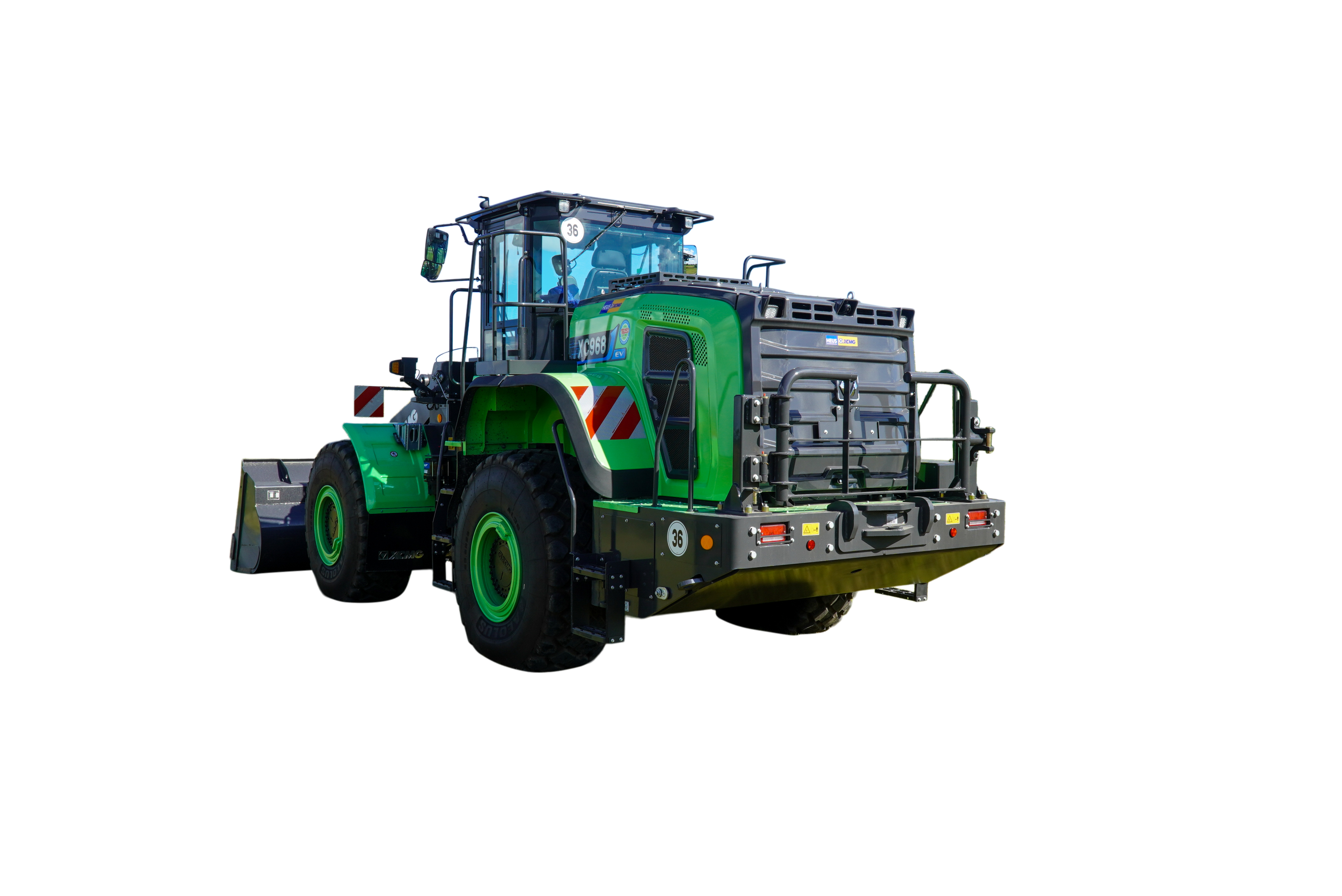

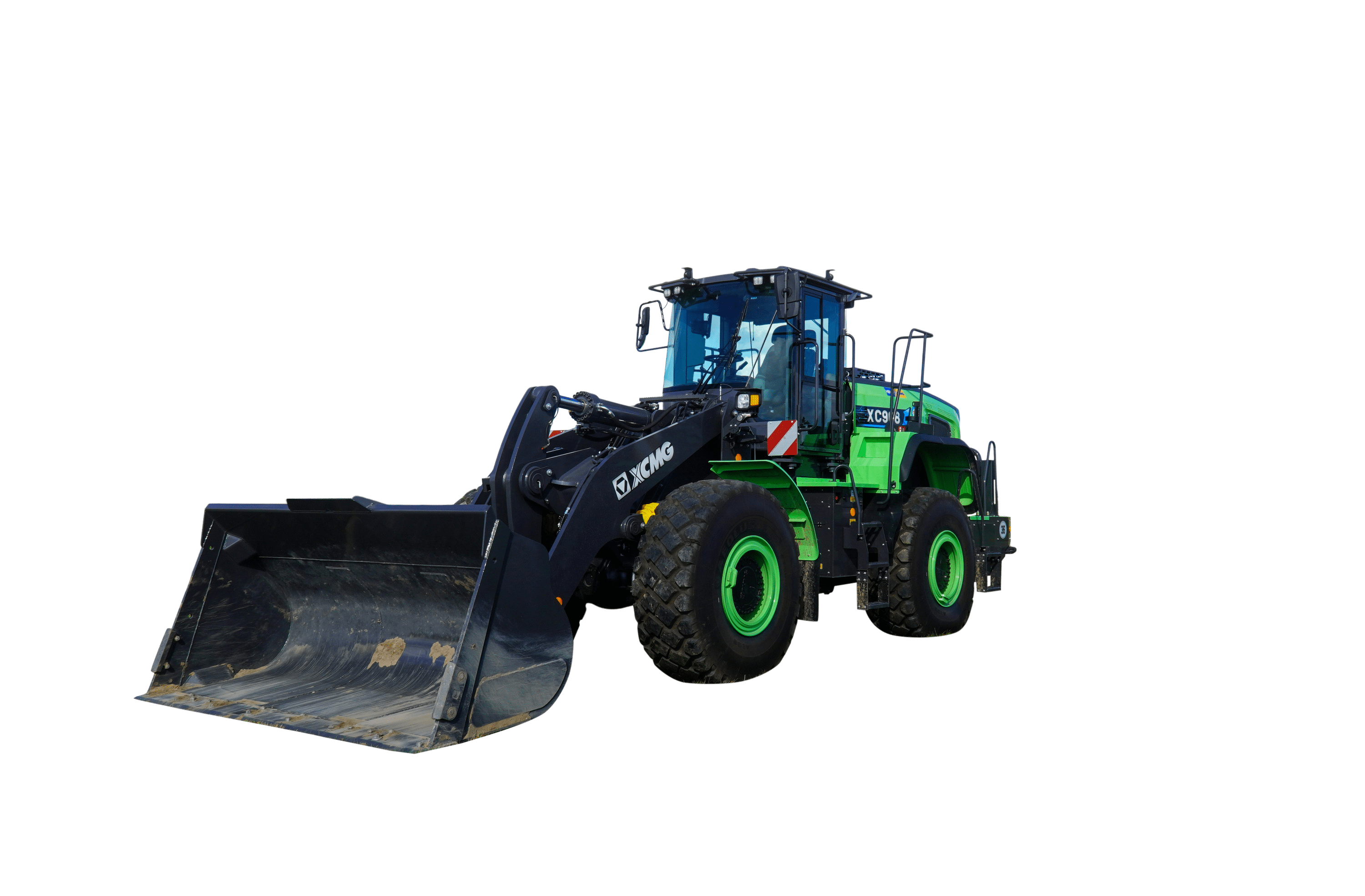

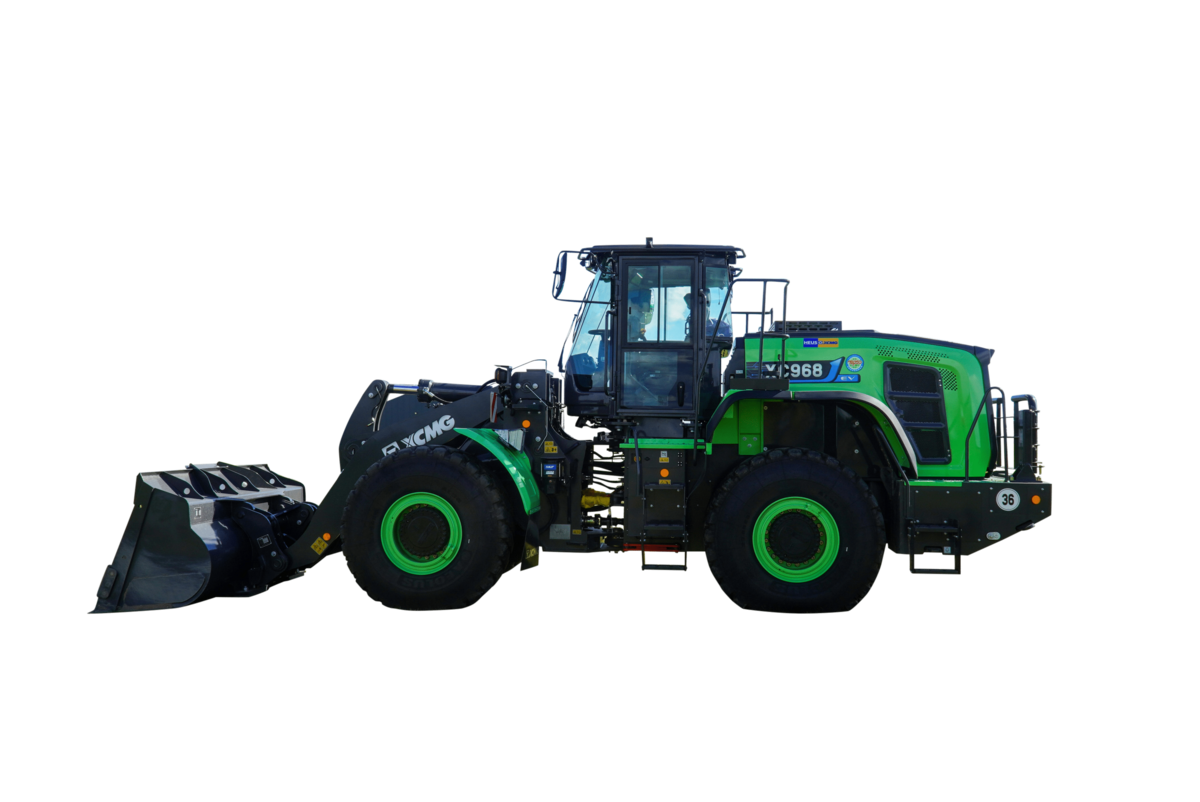

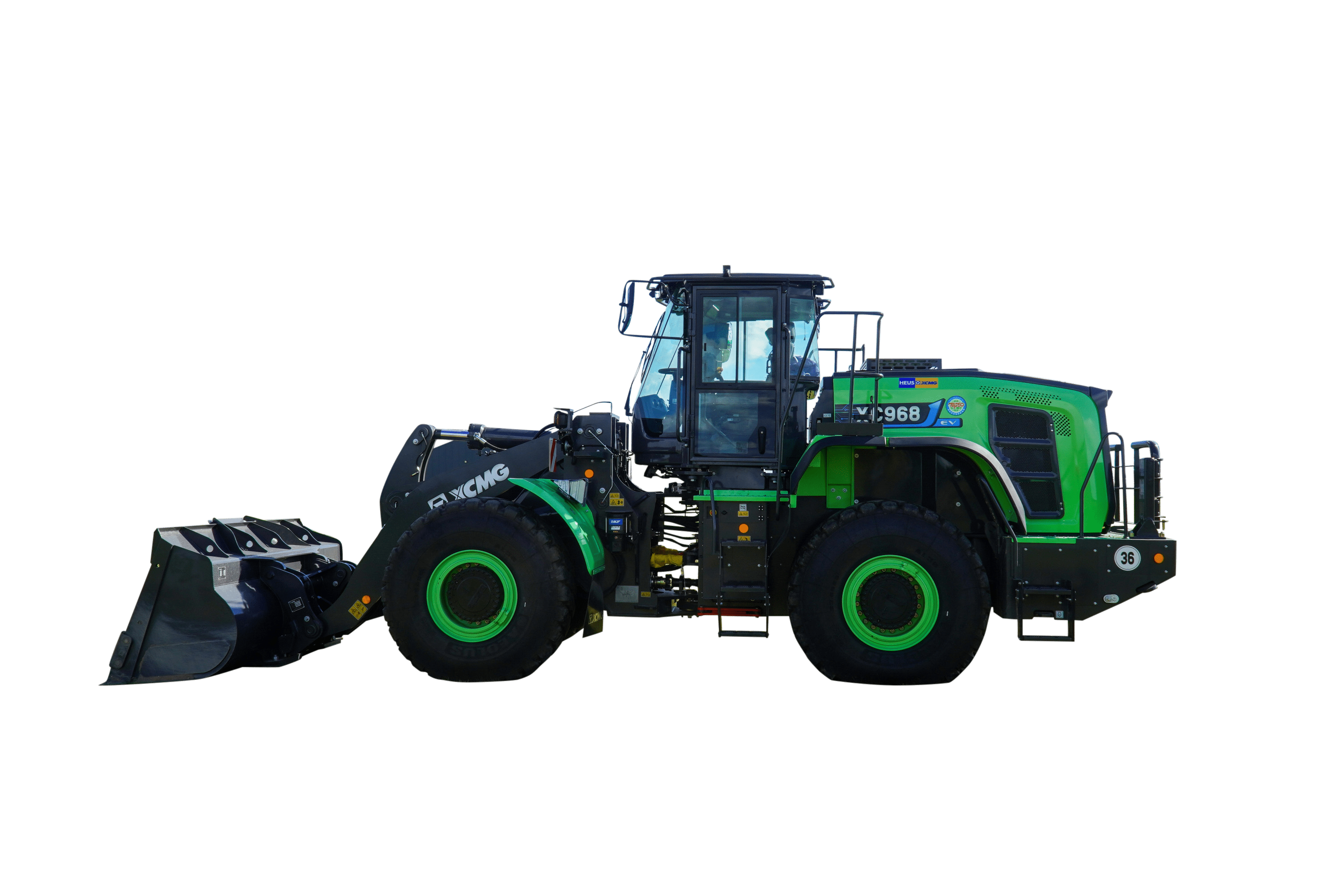

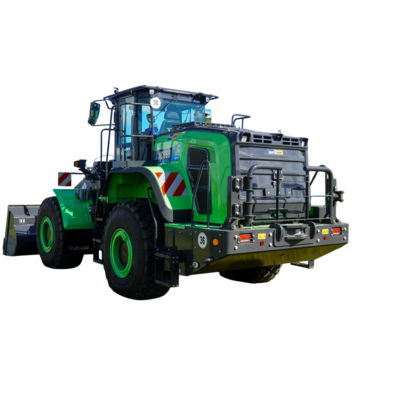

XCMG XC968-EV
Fitted as standard with:

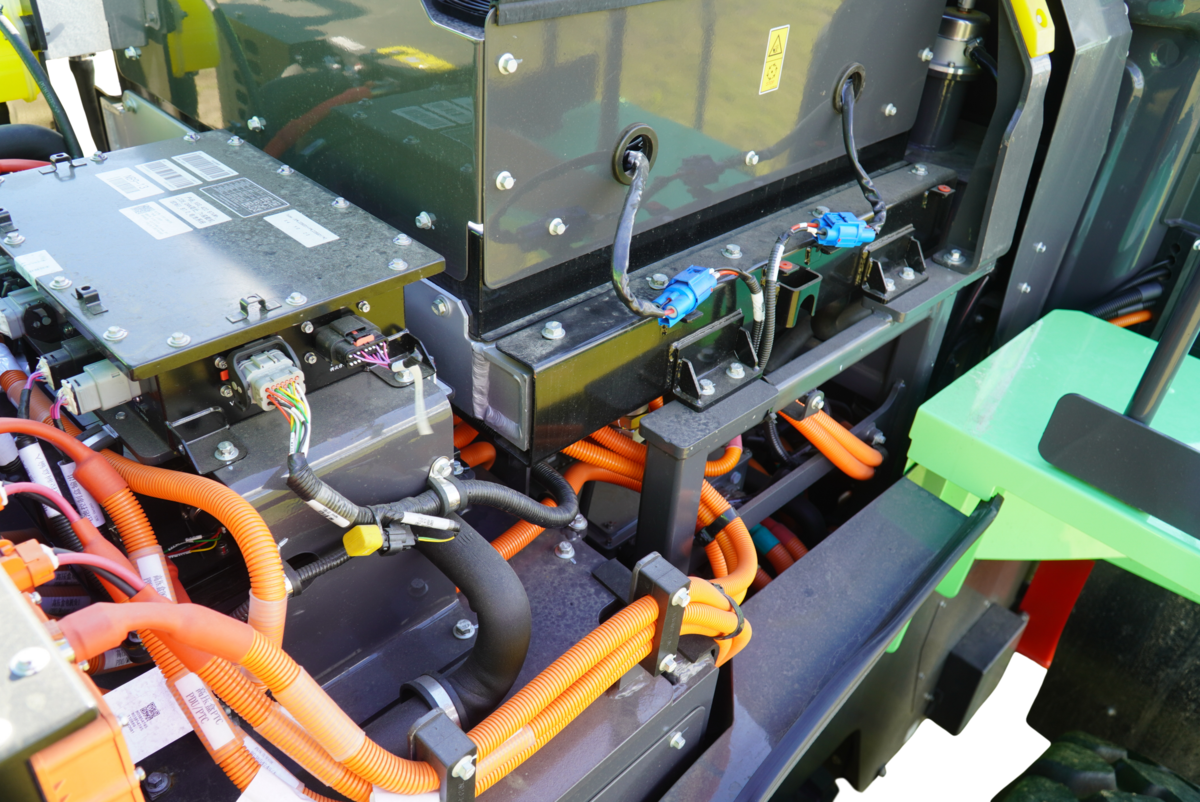

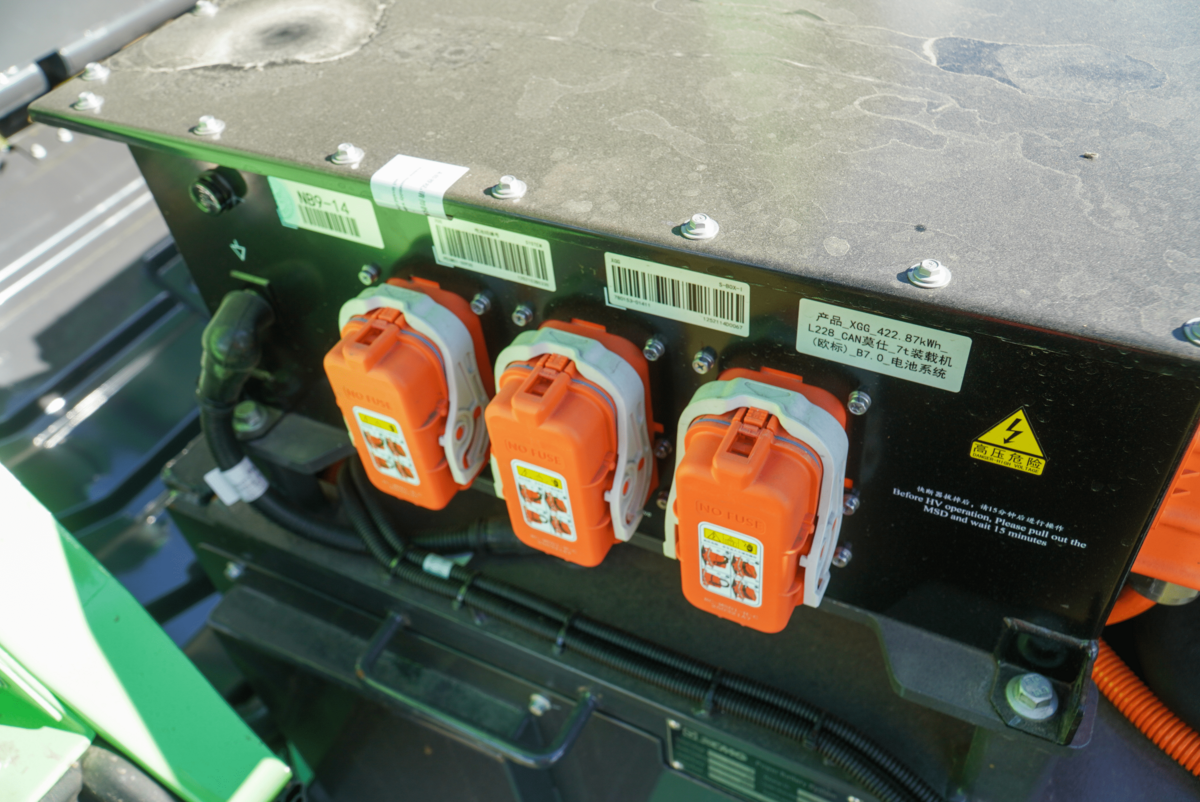

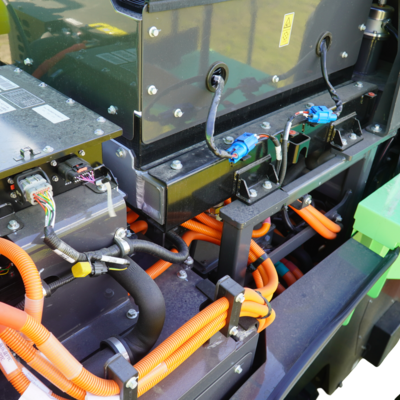

- CATL-Lithium battery pack 282kWh-618V,
- 2 Driving motors: 200kW (2x 100kW) directly on drive shaft
- 70kW hydro motor
- Lifting capacity: 5800 Kg.
- 2x Double hydr. connection on arm
- Cabin with A/C , Radio , Working lights etc.
Emission-free with a cost saving of more than 60% in operation
Price on request
Downloads
Battery capacity
282
Driving motor
270
Own weight
18800
Specifications
Dimensions
- Bin capacity
- 3.2
- Cradle base
- 3350
- Field wire
- 2250
- Height to top of roof
- 3475
- Max. Tipping height
- 3370
- Overall length with bin
- 8660
- Overall width
- 2996
- Steering angle
- 40
- Tipping range
- 1200
- Turning circle
- 6005
Electric motor
- Battery capacity
- 282
- Driving motor
- 270
- Running time
- 6 - 8 uur
Technical specifications
- Max traction force
- 174
- Max. Breakout force
- 170
- Total cycle time
- 9.7
Weight
- Max. Lifting capacity
- 5800
- Own weight
- 18800

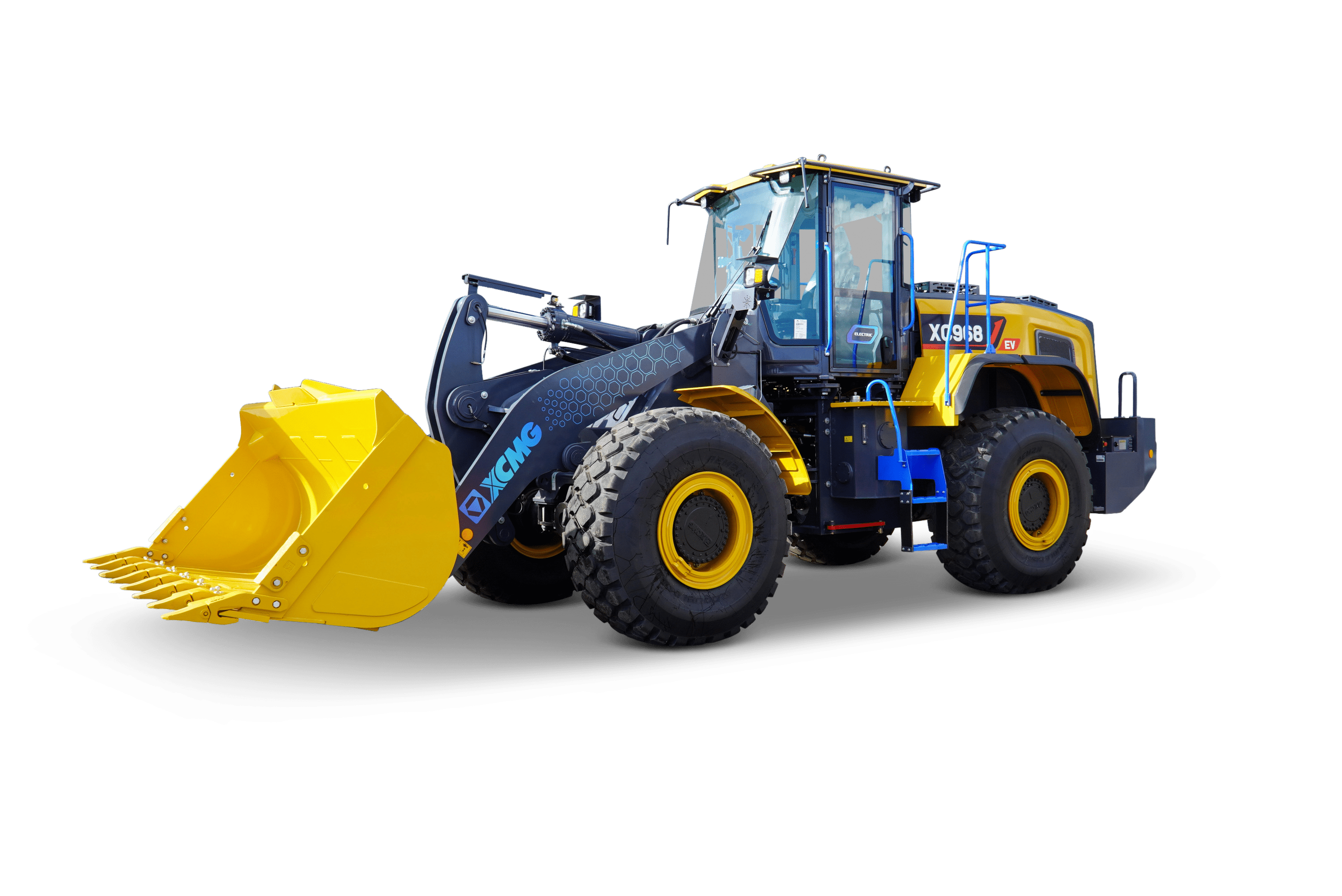

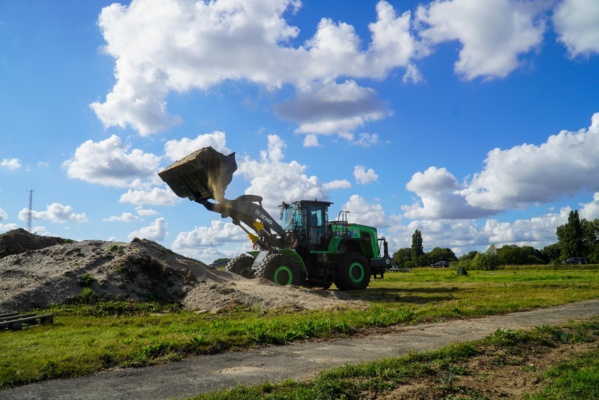

The XCMG XC968-EV is an all-electric shovel that combines durability with powerful performance, ideal for companies aiming for emission-free operation and lower operating costs. With a CATL lithium battery pack of 282 kWh and a powerful drive system (2 travel motors of 100 kW each), it offers impressive performance at a lifting capacity of 5,800 kg.
Key features
- Electric drive: Completely emission-free thanks to the advanced battery pack (618V) with long service life.
- Powerful motors: Two travel motors (200 kW total) directly on the drive shaft and a 70 kW hydraulic motor ensure smooth and efficient performance.
- Versatility: Equipped with 2 double hydraulic connections on the arm, making it suitable for different attachments.
- Comfort and safety: Cab equipped with air conditioning, radio, working lights and ergonomic design for long working days.
- Cost savings: Over 60% lower running costs compared to diesel variants.
Applications
The XCMG XC968-EV is ideal for:

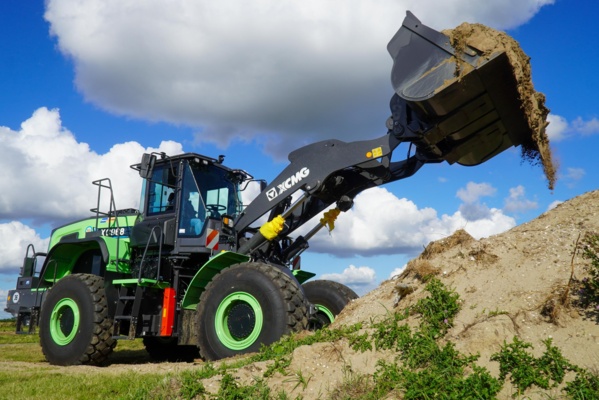

- Logistics and bulk handling: Loading and moving heavy materials such as sand, gravel and soil.

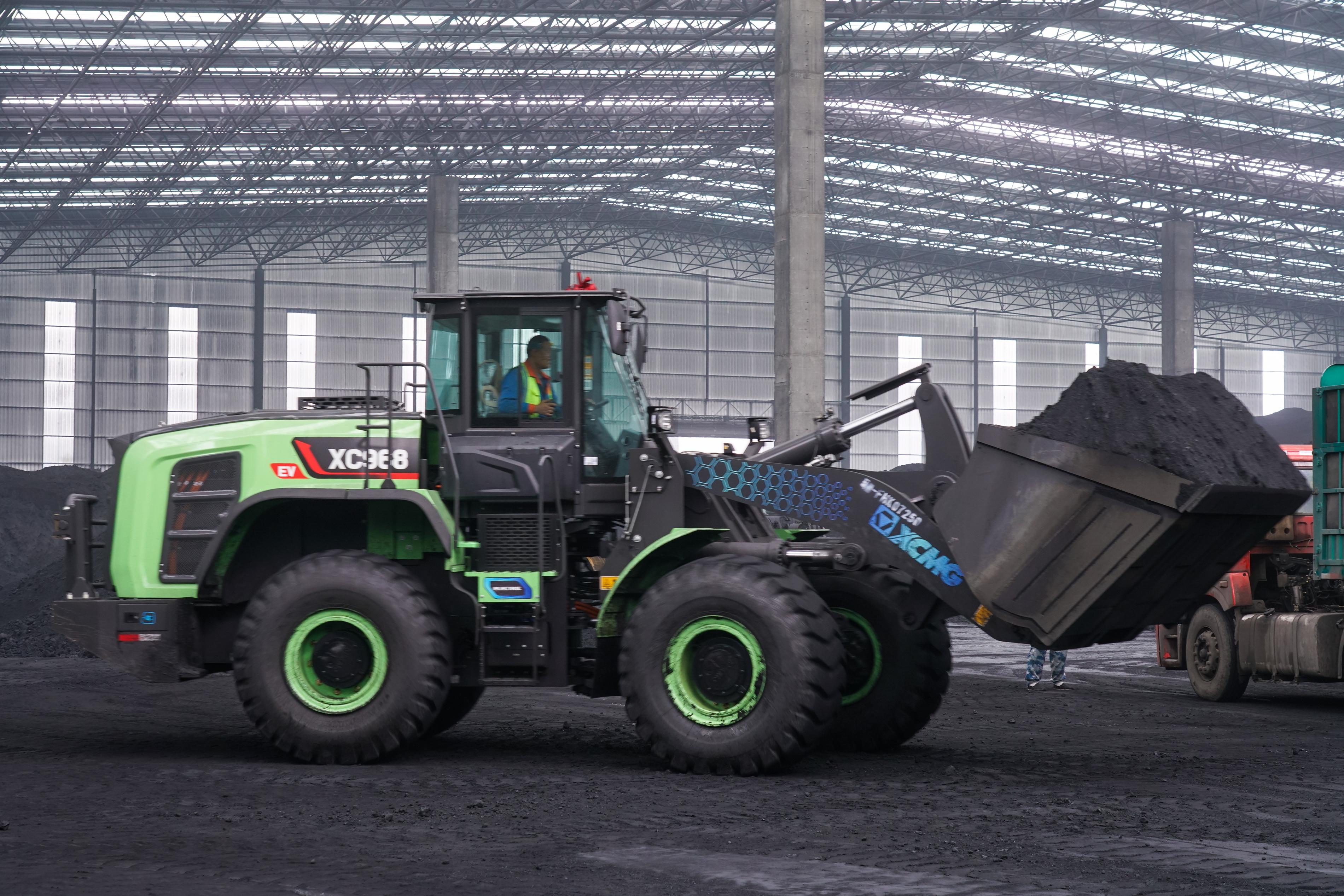

- Recycling and waste handling: Emission-free operation in indoor spaces or environmentally conscious environments.
- Urban projects: Quiet and clean working in urban areas without emissions.

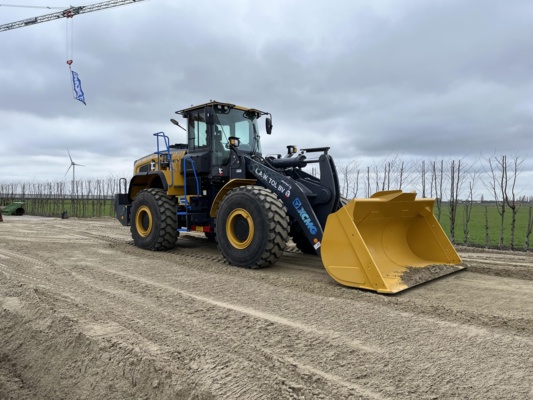

- Industry and construction sites: Transporting heavy loads with low operating costs.
Thanks to its emission-free operation, versatility and cost savings, the XC968-EV is a forward-looking choice for companies looking to combine productivity with sustainability.
