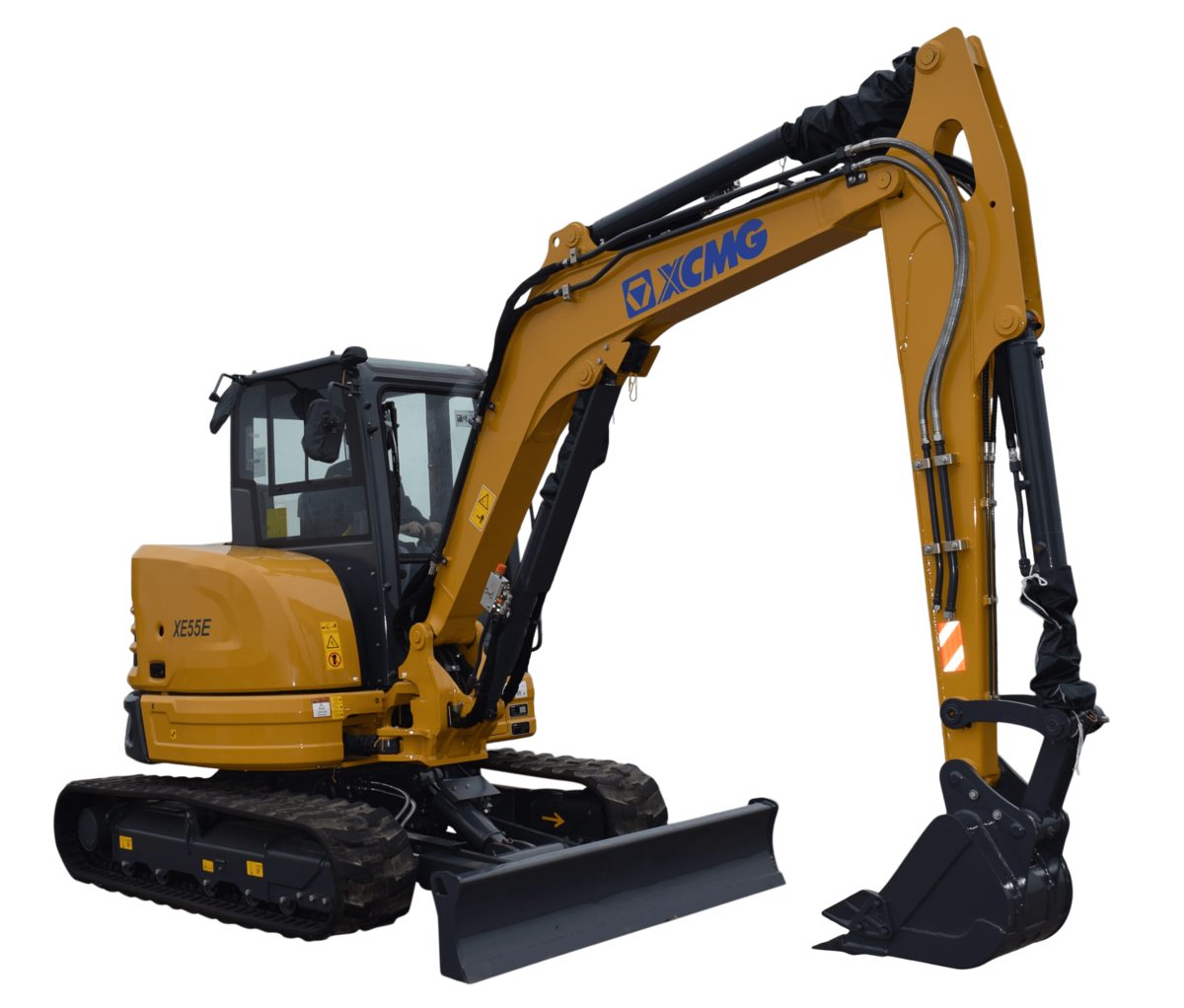

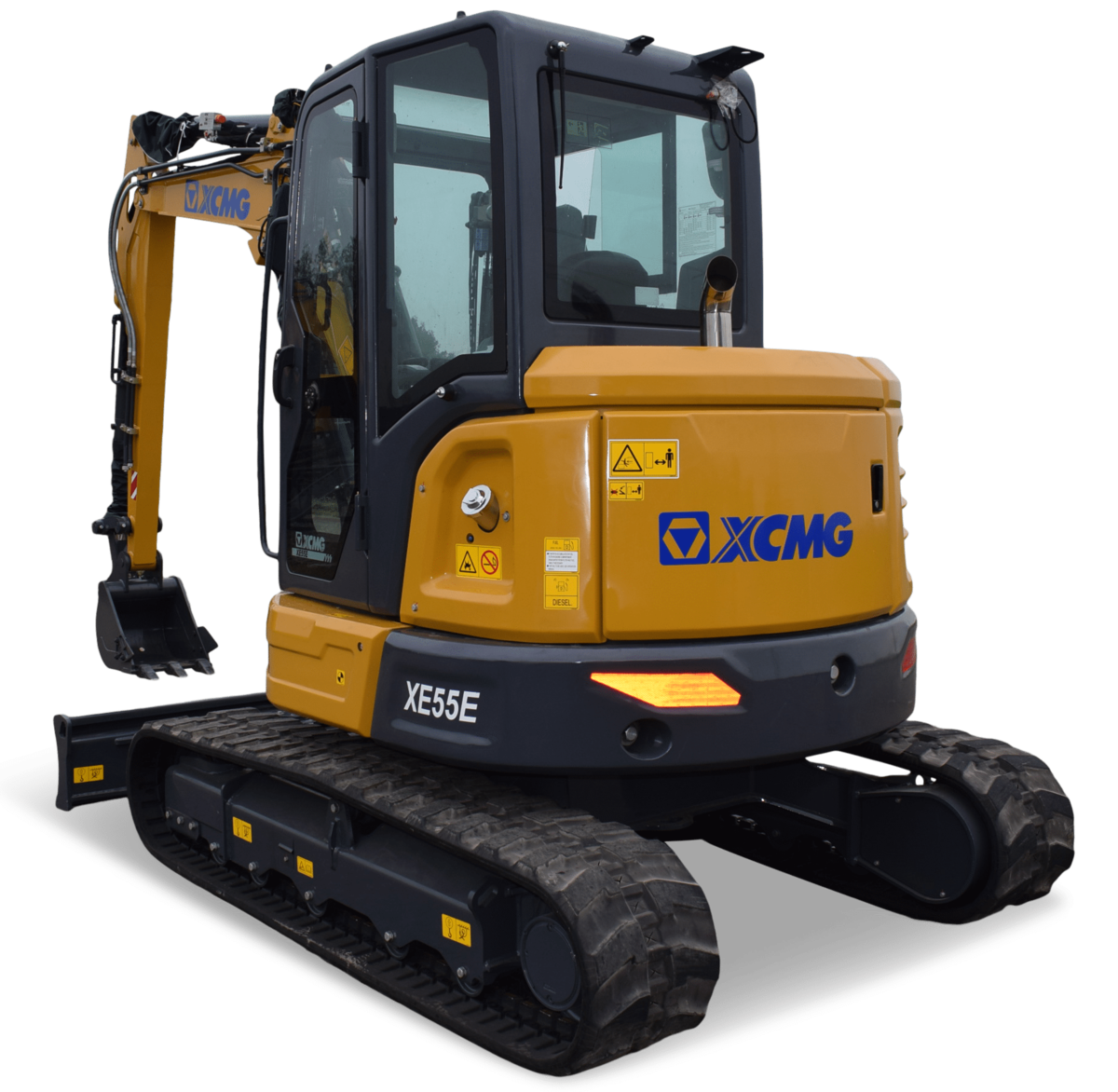

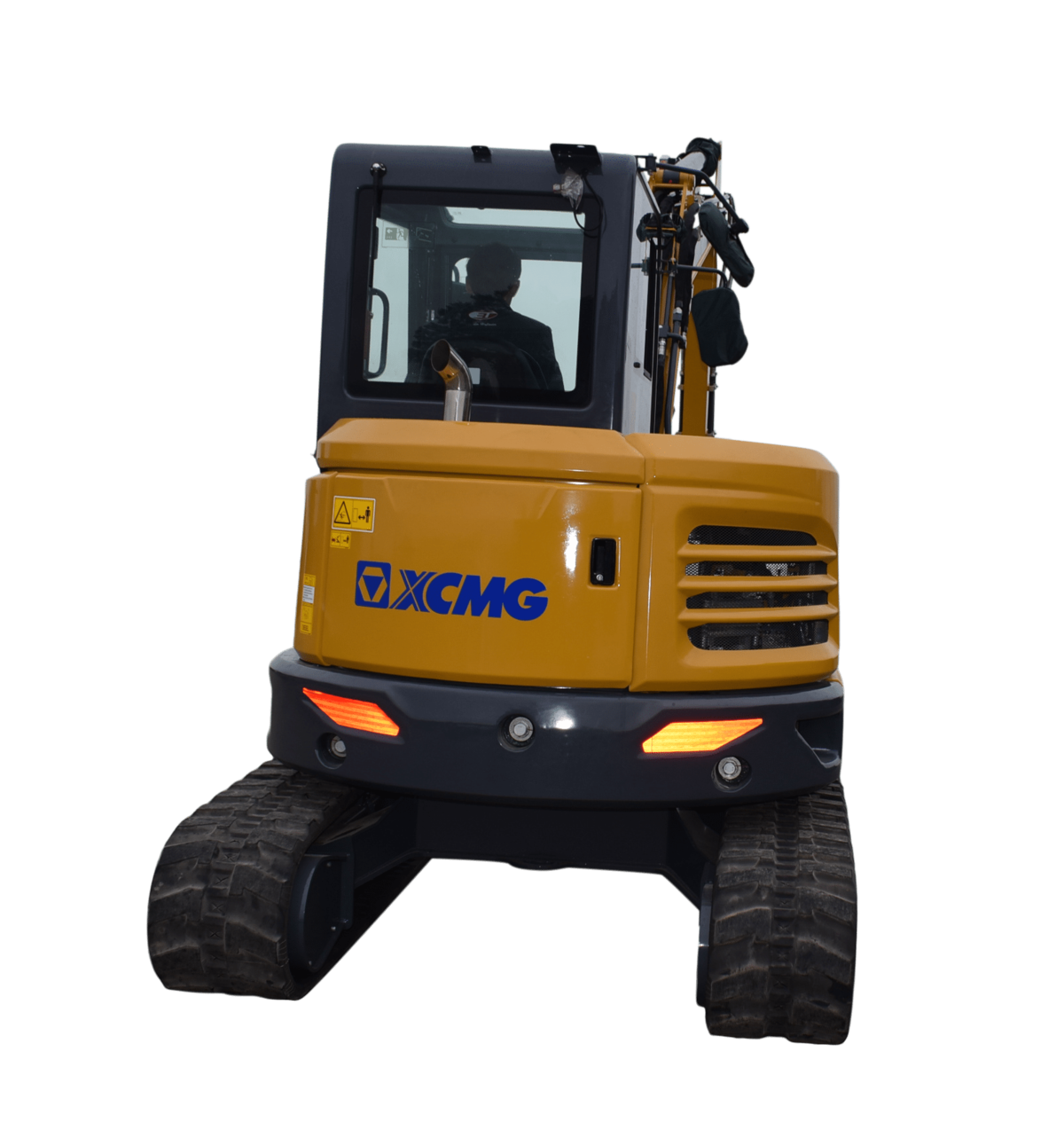

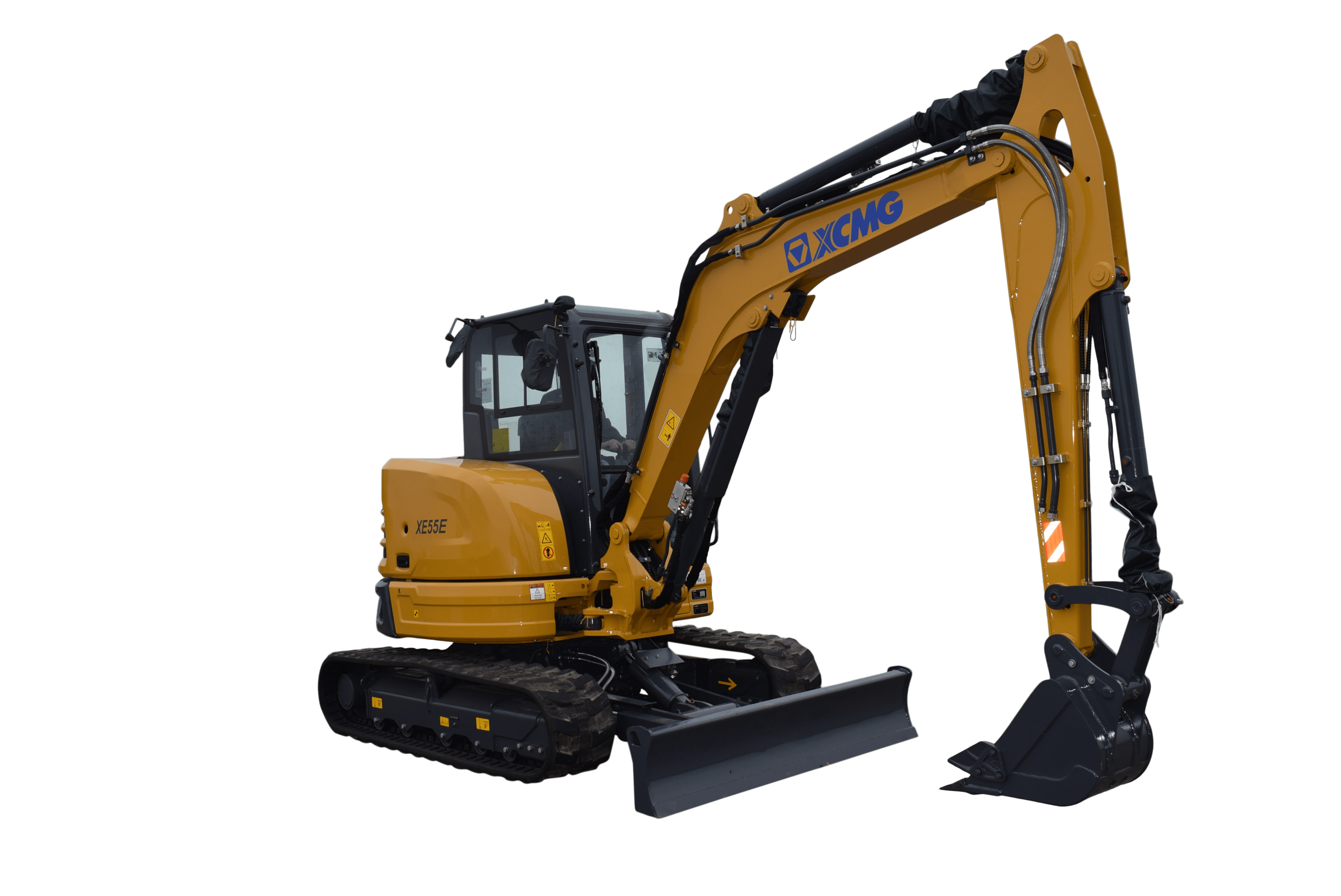

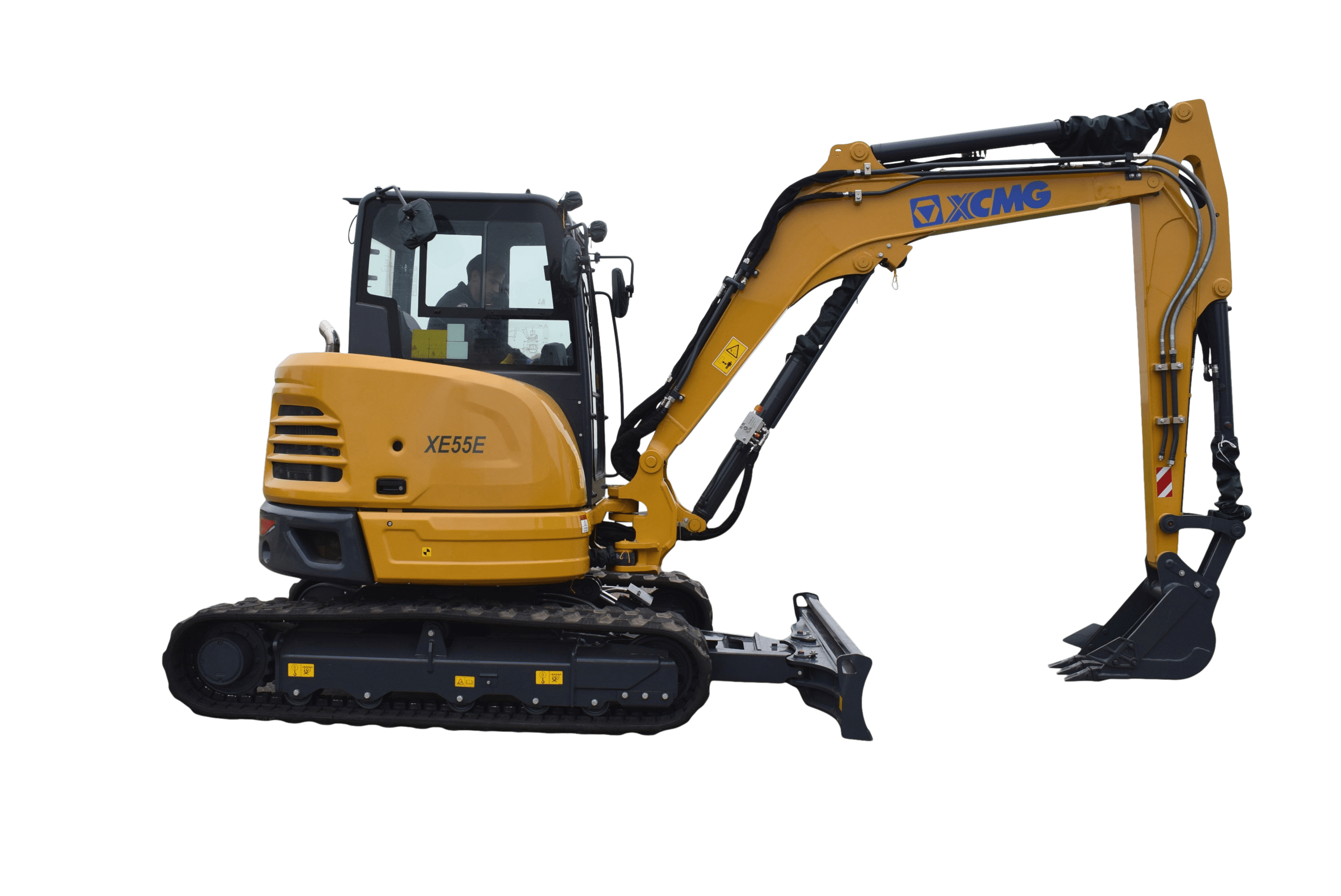

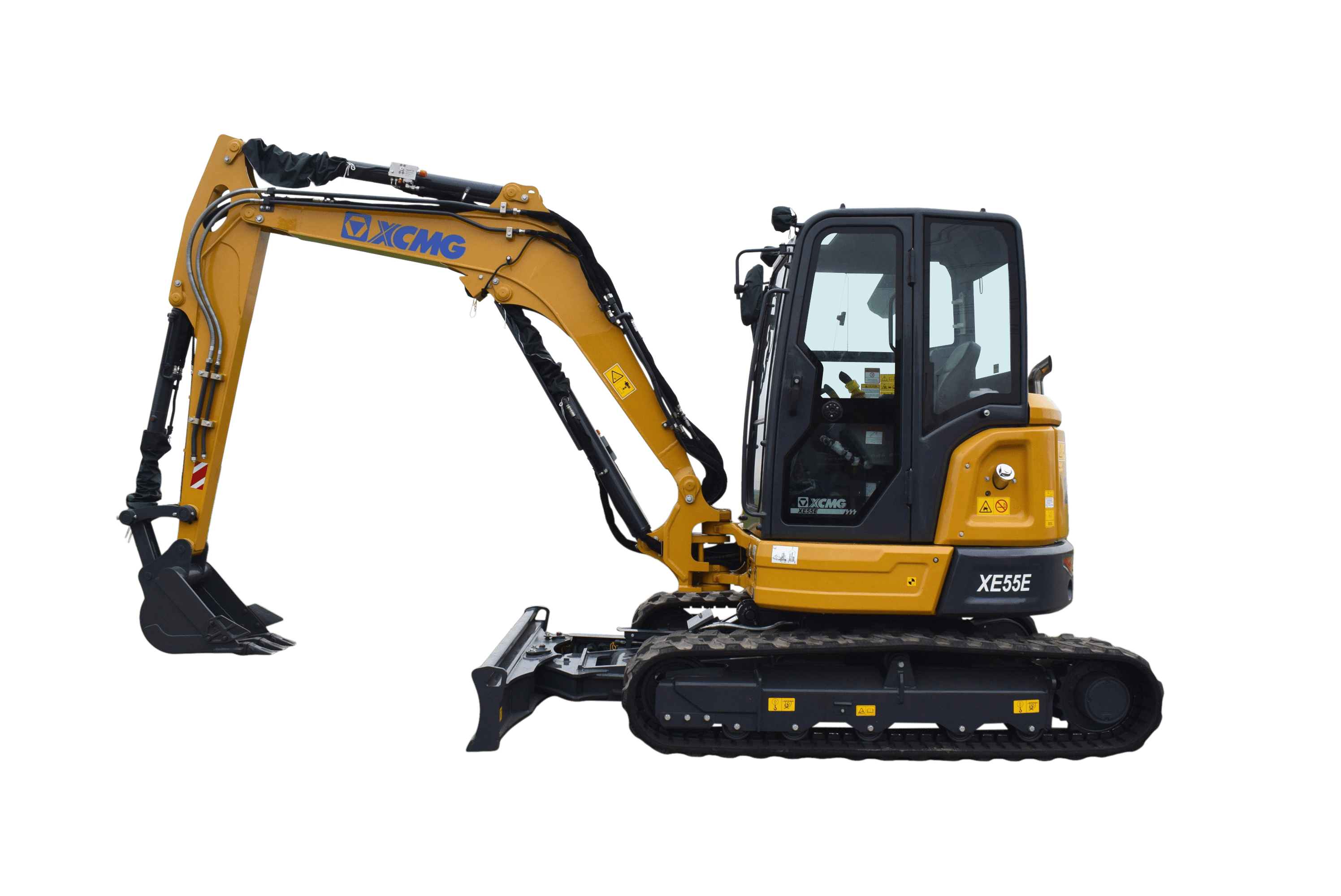

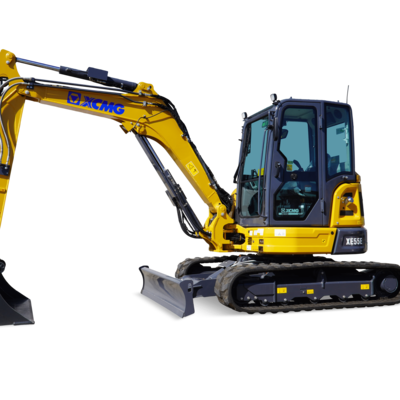

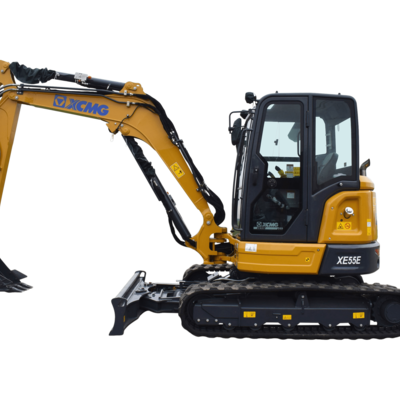

XCMG XE55E
Fitted as standard with:
- Kubota Stage-V
- Hammer function
- Proportional demolition/sorting function
- Air-conditioned

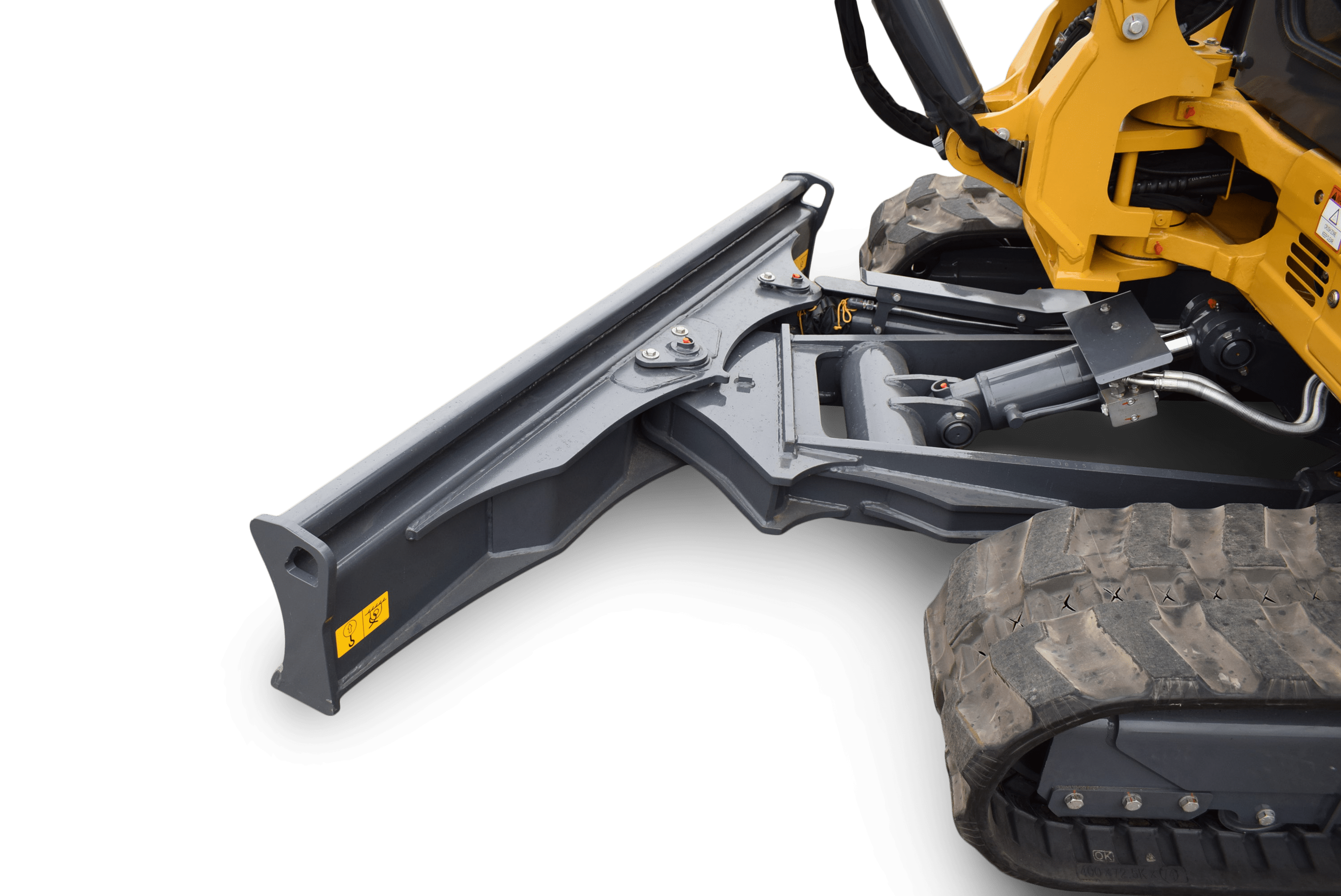

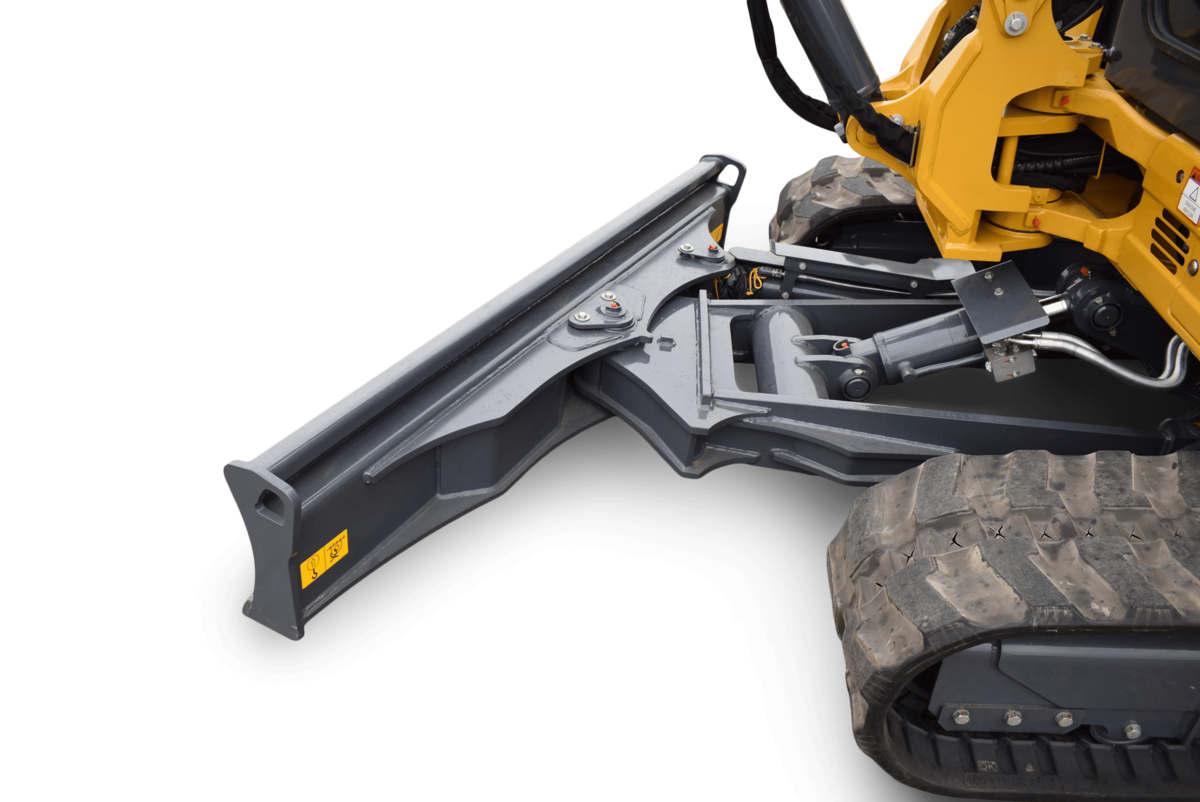

- Dozer-Blade
- Rubber tracks
€54,720.00 excl. VAT
Downloads
Overall width
1960
Own weight
5700
Specifications
Dimensions
- Cabin width
- 1960
- Counterweight free space
- 637
- Cradle base
- 1990
- Ground clearance
- 315
- Height of tracks
- 550
- Height to top of roof
- 2555
- Max. Digging depth
- 3640
- Max. Digging height
- 5650
- Max. Tipping height
- 4010
- Max. Vertical digging depth
- 2690
- Max. excavation radius
- 6110
- Min. forcing radius
- 1040
- Overall length with bin
- 5340
- Overall width
- 1960
- Platform width
- 1830
- Width of tracks
- 400
Engine
- Cooling
- Liquid
- Rated speed
- 2200
Hydraulic system
- Driving system pressure
- 300
- Main pressure safety valve
- 300
- Main pump output
- 158.4
- Steering pressure
- 35
- Swing system pressure
- 240
Other
- Diesel tank
- 68
- Engine oil capacity
- 9.5
- Hydro tank
- 46
Technical specifications
- Arm digging force
- 24.3
- Ground pressure
- 32
- Max traction force
- 52.8
- Max. Digging force
- 44.4
- Rotation speed
- 9.5
Weight
- Own weight
- 5700
A 5.7-tonne excavator, such as the XCMG XE55E, offers impressive power and versatility, specially designed for medium to large projects. With its robust construction and strong performance, this excavator is perfect for intensive construction and earthworks.
Key benefits
- Excellent digging force
Thanks to its weight and powerful engine, the XCMG XE55E delivers high performance even in heavy digging and demolition jobs. This makes it ideal for foundations, large earthworks and infrastructure works. - Stability and reliability
The fixed, wide track provides maximum stability, even when working on difficult terrain or under heavy loads. This makes the machine very suitable for demanding conditions. - Versatility in use
With the ability to use different attachments, such as demolition hammers, digging buckets and augers, the XE55E can be used for excavation, earthmoving, cable trenching, landscaping and even demolition work. - Spacious and comfortable cab
The XCMG XE55E features a spacious, well-designed cab with ergonomic controls. This ensures comfortable and efficient working even during long working days. - Efficient and cost-effective
The XE55E features an economical engine that combines power and efficiency, resulting in lower operating costs without compromising on performance.
With its combination of power, stability and versatility, the XCMG XE55E is the ideal choice for contractors needing a reliable 5.7-tonne excavator for larger construction projects and challenging terrains.
