XCMG XE45E
Fitted as standard with:
- Kubota Stage-V engine
- Hammer function
- Proportionally controlled demolition/sorting function
- Air conditioning

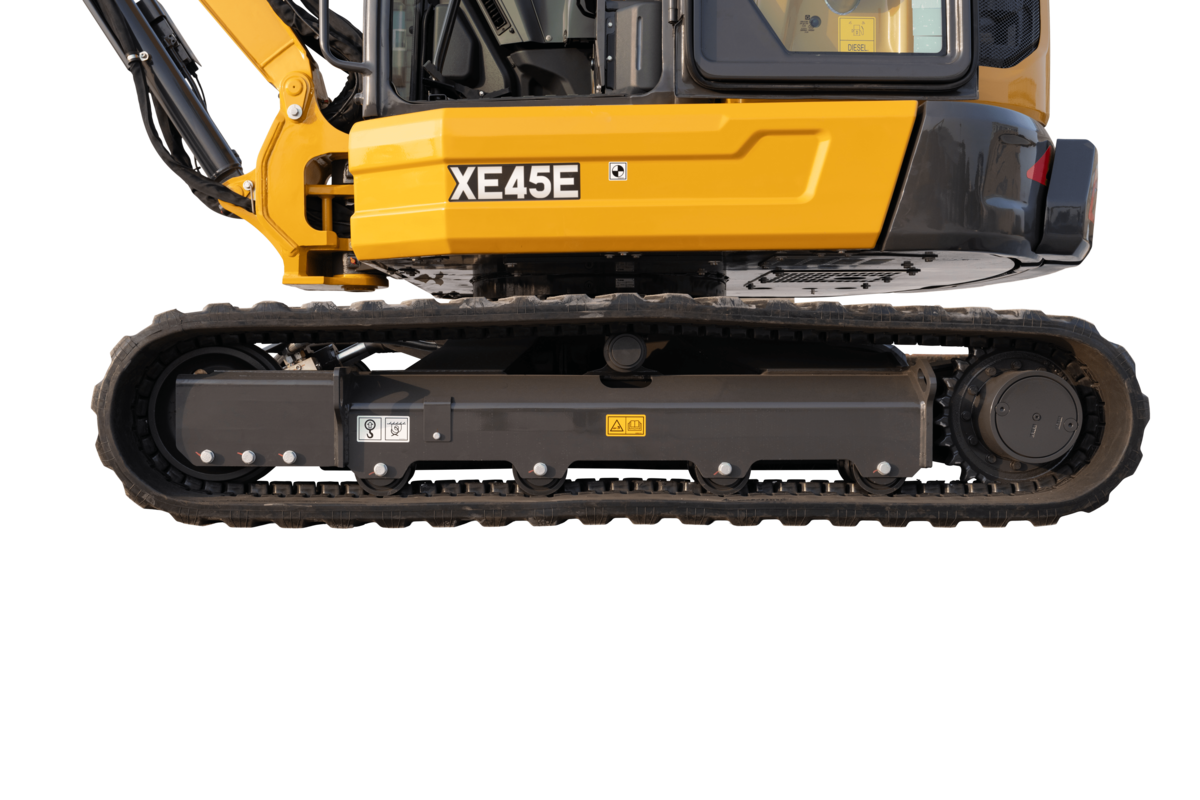

- Rubber tracks
- Dozer blade
- Heated cab with ROPS/TOPS and OPG certification (ISO 12117-2:2008 and ISO 10262:1998)
- High-quality 7" touchscreen display
- Rear view camera
- Sun hood
- Additional counterweight
- Cruise control for demolition hammer function ("one-key crushing cruise")
- Hydraulic system with variable pump (132 l/min)
- Adjustable auxiliary hydraulics (24 MPa)
Downloads
Overall width
1850
Track width
1500
Own weight
4800
Specifications
Dimensions
- 8 ft digging depth with flat floor
- 3210
- Chassis width
- 1850
- Counterweight free space
- 597
- Cradle base
- 1800
- Ground clearance
- 290.5
- Height of dozer blade
- 392 mm
- Height of tracks
- 513
- Height to top of roof
- 2649
- Max cutting depth of dozer blade
- 417
- Max. Digging depth
- 3342
- Max. Digging height
- 5479
- Max. Tipping height
- 4052
- Max. Vertical digging depth
- 2680
- Max. excavation radius
- 5740
- Maximum lifting height of dozer blade
- 513
- Maximum reach at GRP
- 5585
- Min. forcing radius
- 1215
- Minimum unloading height
- 1378
- Overall length with bin
- 5250
- Overall width
- 1850
- Tail swing radius
- 1215
- Track length
- 2249
- Track width
- 1500
- Width of tracks
- 350
- Width of upper structure
- 1758
Engine
- Cooling
- Water
Hydraulic system
- Driving system pressure
- 2200
- Main pressure safety valve
- 240
- Main pump output
- 132
- Steering pressure
- 240
- Swing system pressure
- 206
Other
- Diesel tank
- 65
- Hydro tank
- 36
Technical specifications
- Arm digging force
- 22
- Ground pressure
- 34
- Max traction force
- 42
- Max. Digging force
- 37
- Rotation speed
- 9
Weight
- Own weight
- 4800

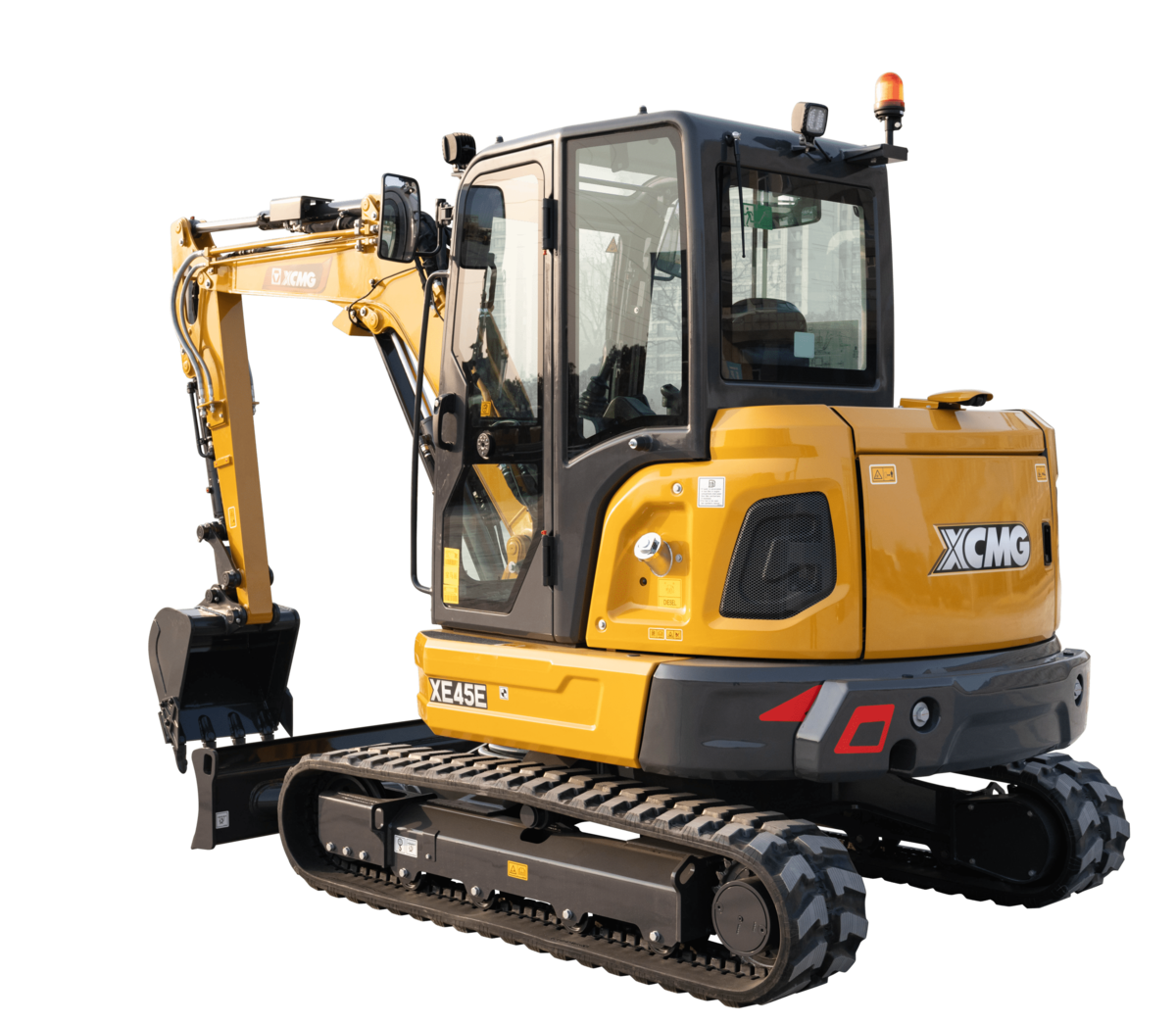

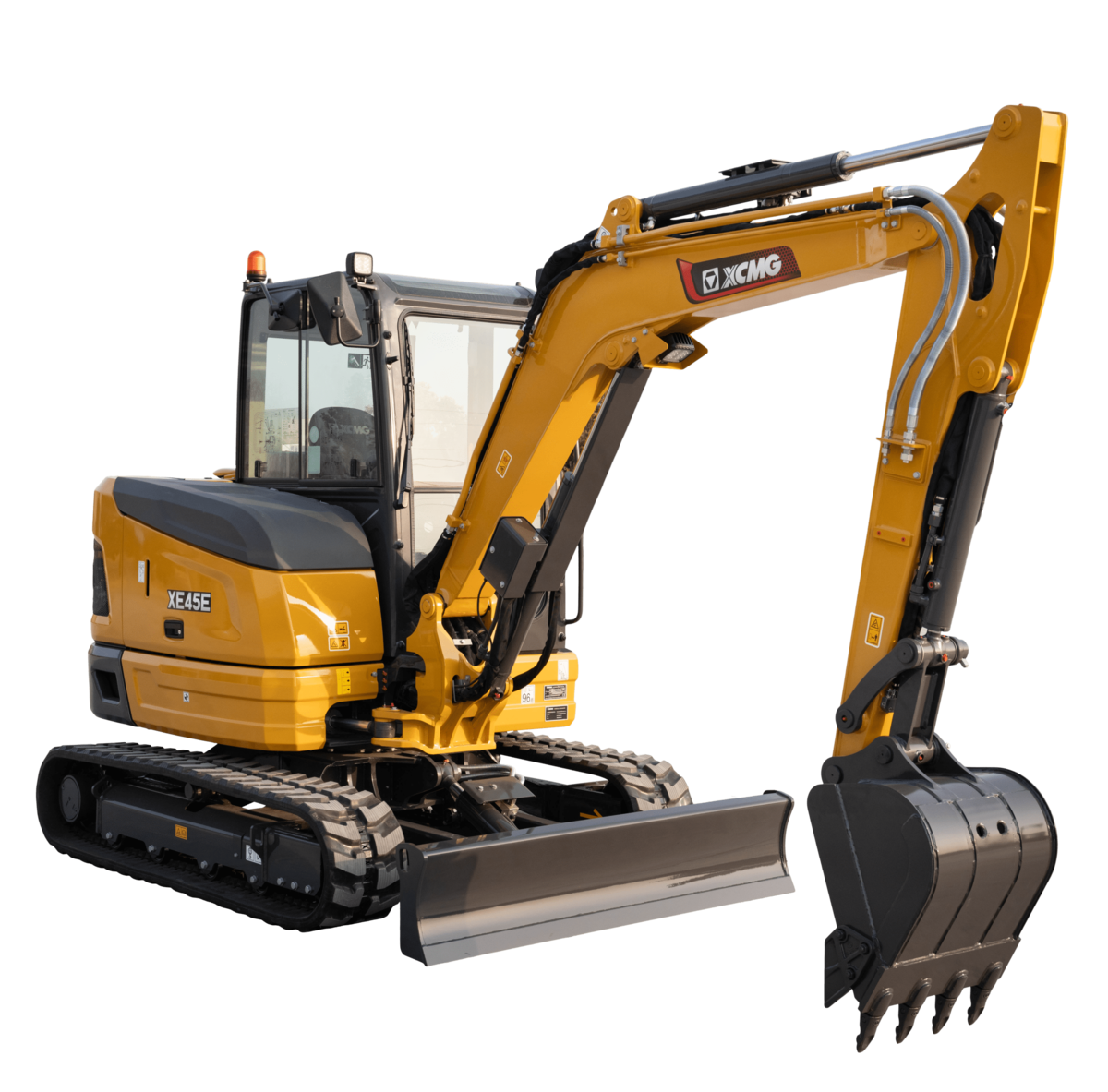

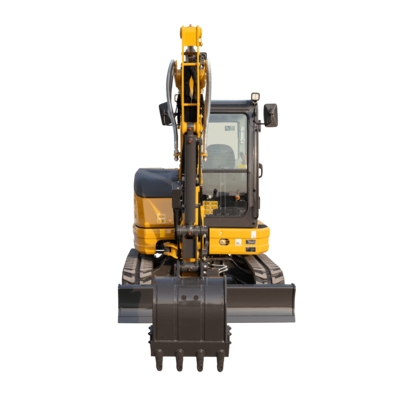

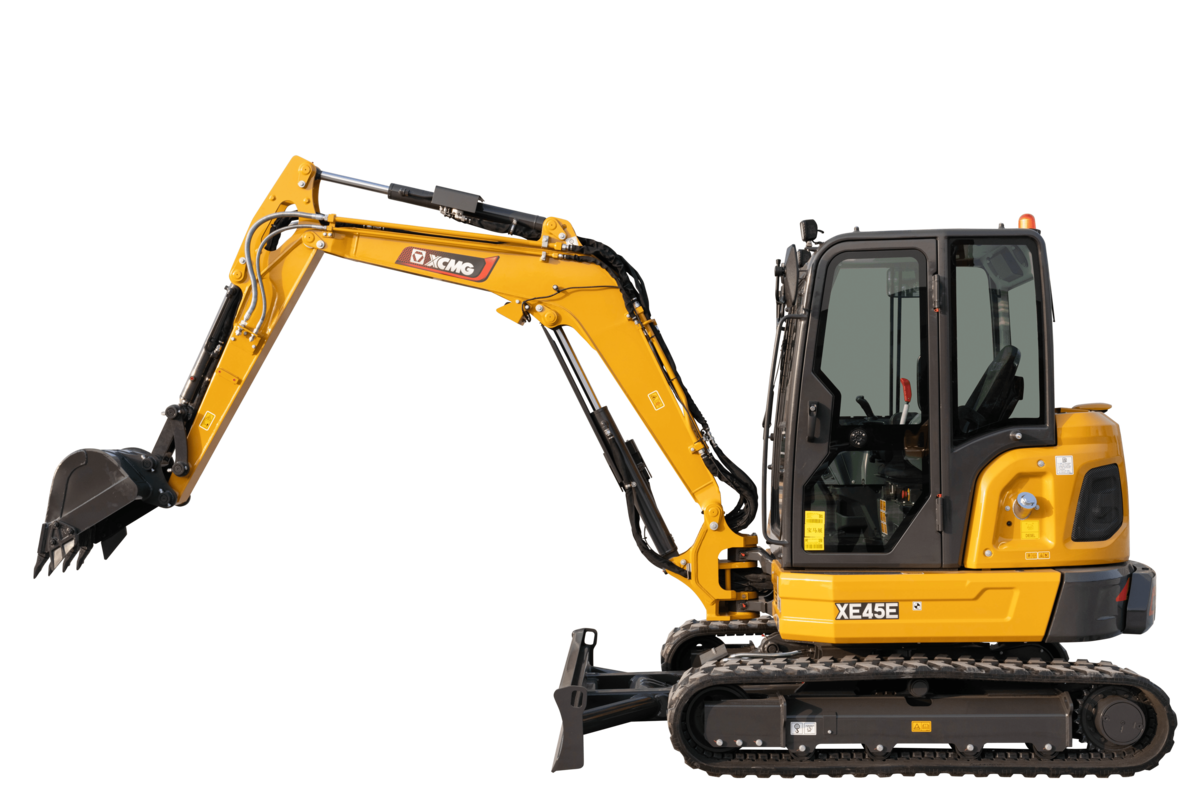

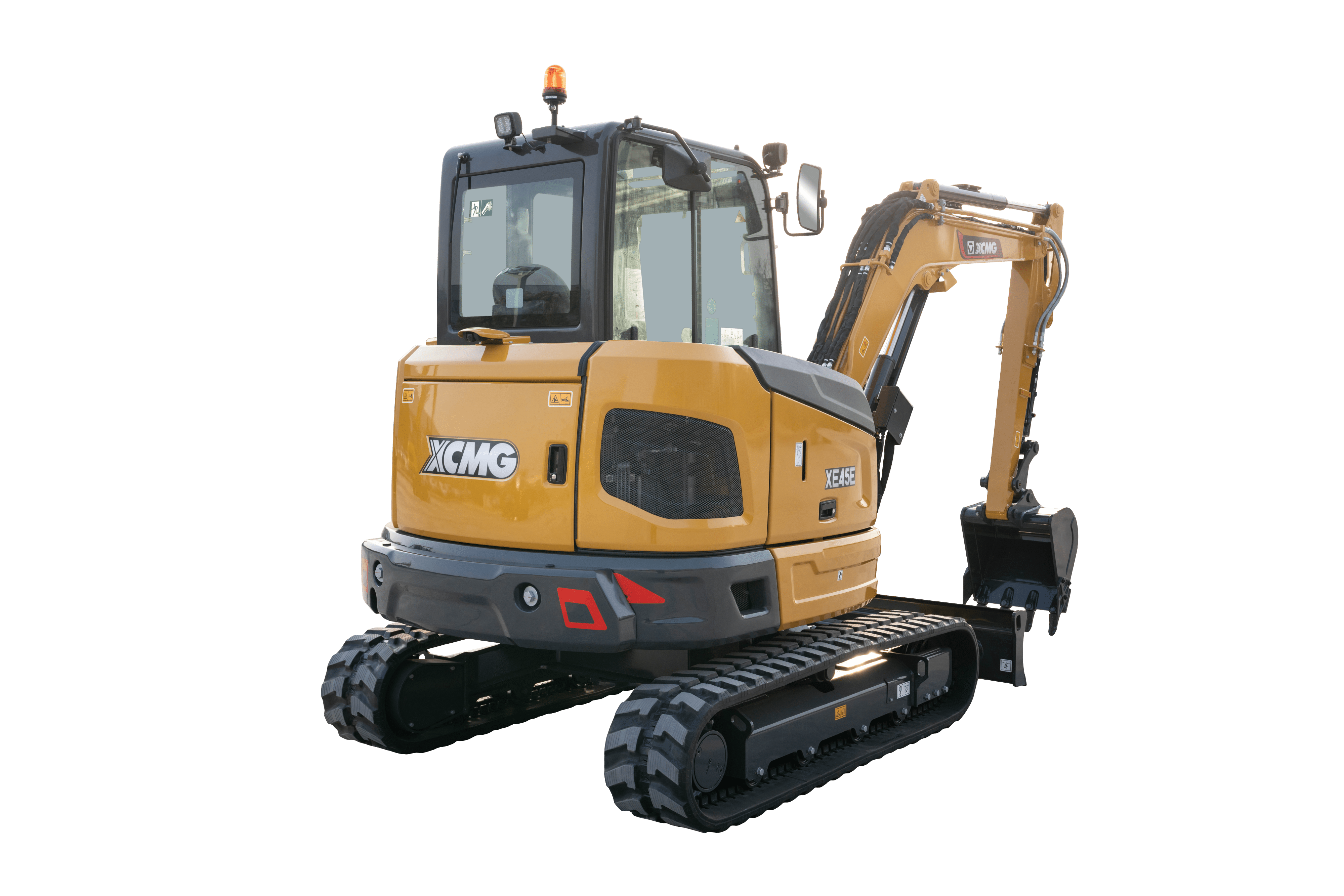

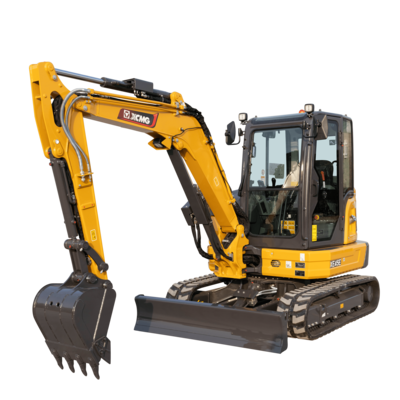

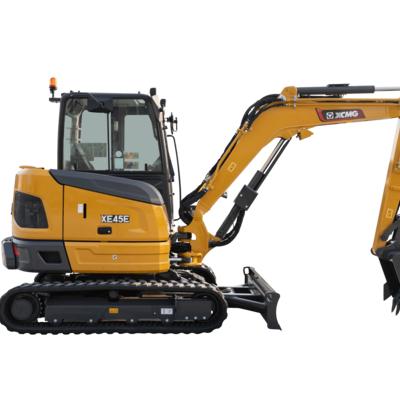

XCMG XE45E - Powerful 4.8 tonne mini excavator with comfort and control
The XCMG XE45E is a modern and powerful 4.8-tonne crawler excavator for professionals who want to combine performance, versatility and ease of control. This compact excavator comes standard with a powerful Kubota Stage-V engine, an advanced hydraulic system, and a comfortable cab with touchscreen display and reversing camera.
The XE45E is ideal for intensive applications in urban construction, landscaping, drainage work and infrastructure projects.
✔️ Applications
This 4.5-tonne mini excavator excels in applications including:
- Excavation work in tight inner-city areas
- Preparatory work for cables, pipes and foundations
- Horticulture and yard paving
- Demolition work with hammer or sorting grapple
- Compact and powerful
Thanks to the short swing radius and compact construction, ideal for difficult-to-reach locations. - High operating comfort

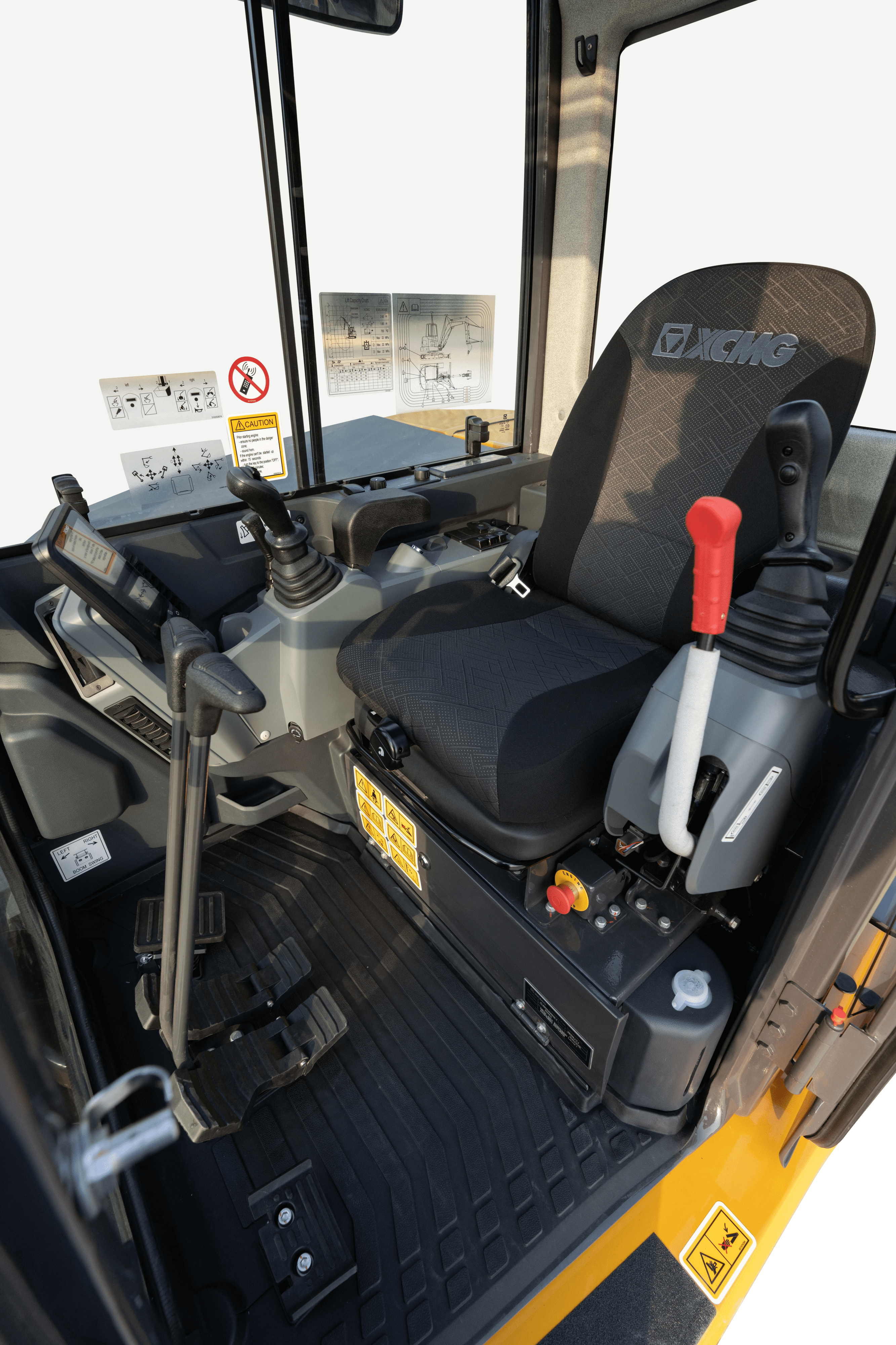

Everything is designed for the operator: visibility, comfort, safety and intuitive operation. - Ready for immediate use with attachments
Work with grapple, hammer or brush thanks to multifunctional auxiliary hydraulics.
🚜 Buy XCMG XE45E at Heustractors?
At Heustractors, we deliver machines that perform - without compromise. The XE45E comes complete as standard, so you can get straight to work. For professional use, service-oriented advice and fast delivery, you have come to the right place.
👉 Request a no-obligation quote or schedule a viewing.
